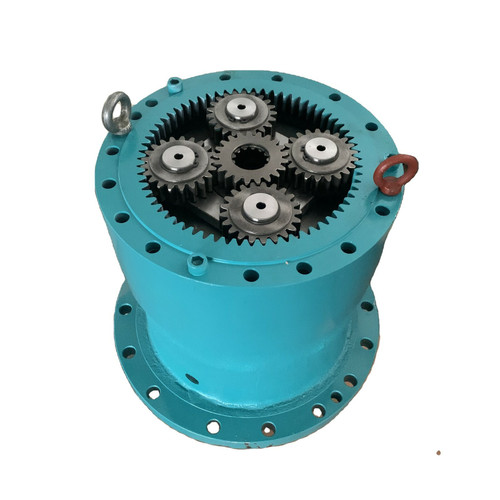

24100J11091F5 swing reduction fits kobleoc sk200-3 sk200 mark iii 24100J11091F7. WITHOUT MOTOR
aftermarket replacement parts,
WARRANTY 3 MONTHS
NEW ,IN STOCK
FAST SHIPPING FEDEX 1-5 DAYS ARRIVE ,
USA BASED SELLER
IMPORTANT NOTE
Please verify the product details through the video to confirm that the product can fit your machine. For any reason to return, you need to
be responsible for the round-trip shipping, please note.
Orders are delivered through LTL for that reason the shipping address must be able to accommodate a full size truck/semi-truck with trailer.
You must indicate if your shipping will be delivered for commercial or residential address (Limited Access).
THIS LISTING WILL BE NORMAL SHIPPING ONLY FOR COMMERCIAL/BUSINESS ADDRESS IN THE CASE OF:
Residential OR Limited access areas shippings will have an additional charge of $120
If you need lift gate, it will have an additional charge of $120
OHTER AVAILABLE PARTS:
24100J11091F3 [1] MOTOR ASSY, SWING, Serial Range: YQ01701--YQ01840 MOTOR ASSY, SWING, Serial Range: YQ01701--YQ01840
. . 24100J11091F5 [1] MOTOR ASSY, SWING, Serial Range: YQ01841--YQ01866 MOTOR ASSY, SWING, Serial Range: YQ01841--YQ01866
. . 24100J11091F7 [1] MOTOR ASSY, SWING, Serial Range: YQ01867--YQ01948 MOTOR ASSY, SWING, Serial Range: YQ01867--YQ01948
. . 24100J11091F9 [1] HYDRAULIC MOTOR KOB , Start Serial: YQ01949- Superseded by part number: 24100J11091F10
5. R25P0047D8 [1] BEARING KOB ROLLER
6. 25Z494D11 [1] BEARING KOB ROLLER
9. 2410T340 [4] ROLLER SHAFT KOB
10. 2401N468 [1] RING GEAR KOB
11. 2401P1276 [1] SUN GEAR KOB
12. 2401P1277 [4] PINION KOB
13. 2401P1279 [4] KIT KOB , Serial Range: YQ01701--YQ01840 Superseded by part number: 24001T71F2
15. ZS23C08030 [12] SCREW,Hex Socket Head, M8 x 30mm KOB M08x1.25x30mm Superseded by part number: ZS28C08030
18. 2418P20198D3 [2] SPACER KOB (4)
19. 2401P1278 [1] SUN GEAR KOB , Serial Range: YQ01701--YQ01840 Superseded by part number: 2401P1434
20. ZR16X04500 [1] RING KOB Retaining -- ID 45 x OD 58 x Th 1.8mm
23. 2425T383 [76] PLUG WRENCH NEEDLE,ROLLER, Serial Range: YQ01701--YQ01840 PLUG WRENCH NEEDLE,ROLLER, Serial Range: YQ01701--YQ01840
24. 2425T384 [140] NEEDLE BEARING KOB ROLLER
25. ZR16X08500 [1] LOCKING RING KOB SNAP
26. ZS83C20020 [2] SCREW KOB Set -- M20x2.50x20mm
28. 2420T6698D3 [1] RIGID TUBE KOB
29. ZG31U12000 [1] ELBOW KOB 90°
30. ZE82T12000 [1] PLUG KOB 3/4" PT
33. ZS23C14140 [10] SCREW,Hex Socket Head, M14 x 140mm KOB M14x2.0x140mm
34. ZR16X04000 [4] RING KOB Retaining -- ID 37 x OD 40 x Th 1.8mm
37. 2410N519 [1] FINGER ASSY. KOB
38. 2418P23538 [1] HOSE KOB
39. ZD11P09500 [1] O-RING KOB ID 94.6 ± 0.81 x OD 105mm
40. 2418R259 [1] OIL SEAL KOB
41. 2418R2D60 [1] SNAP RING KOB SNAP
42. 2418T21667 [1] PLATE KOB
43. 2418T20987 [1] PLATE KOB
44. 2418T20986 [1] PLATE KOB
45. 2418P22799 [1] RETAINER KOB
46. 2418T20988 [1] SPACER KOB (4)
47. 2414J2298 [1] HOUSING KOB
48. 2418T20989 [1] SPACER KOB
