Product Description

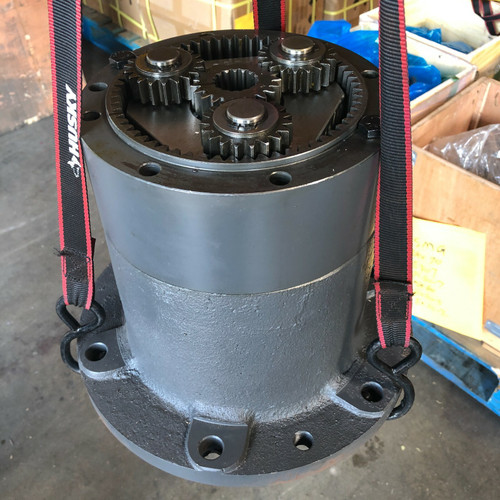

24100J11943F2 SWING REDUCTION WITHOUT MOTOR FITS KOBELCO SK60 MARK III SK60-3

AFTERMARKET REPLACEMENT PARTS.

Fast SHIPPING,2-5DAYS ARRIVE

.NEW.IN STOCK.

USA BASED SELLER.

IMPORTANT NOTE

Please verify the product details through the video to confirm that the product can fit your machine. For any reason to return, you need to

be responsible for the round-trip shipping, please note.

Orders are delivered through LTL for that reason the shipping address must be able to accommodate a full size truck/semi-truck with trailer.

You must indicate if your shipping will be delivered for commercial or residential address (Limited Access).

THIS LISTING WILL BE NORMAL SHIPPING ONLY FOR COMMERCIAL/BUSINESS ADDRESS IN THE CASE OF:

Residential OR Limited access areas shippings will have an additional charge of $120

If you need lift gate, it will have an additional charge of $120

24100J11943F2 [1] MOTOR KOB SWING
1. 2401N559 [1] FINGER ASSY. KOB
3. 2418N1914 [1] RETAINER KOB
2. 2418T8471 [1] SLEEVE KOB
4. 2414J1304 [1] HOUSING KOB
5. R25P0046D1 [1] ROLLER BEARING KOB
6. 25Z627D9 [1] BEARING KOB
7. 2413N460 [1] DIFF. SPIDER KOB
8. 2413N459F1 [1] SPIDER KOB
9. 2401N476 [1] RING GEAR KOB
10. 2425Z543 [3] NEEDLE BEARING KOB
11. ZS23C10110 [8] SCREW,Hex Socket Head, M10 x 110mm KOB M10x1.50x110mm
12. 2401P1319 [1] SUN GEAR KOB
13. 2425Z544 [4] NEEDLE BEARING KOB
14. 2401P1320 [3] PINION KOB
15. 2401P1322 [4] PINION KOB
16. ZD11G07000 [1] O-RING,69.40mm ID x 75.60mm OD x 3.10mm KOB ID 69.40 ± 0.61 x OD 75mm
17. ZS23C08025 [8] SCREW,Hex Socket Head, M8 x 25mm KOB M08x1.25x25mm
18. ZD21T10500 [1] OIL SEAL KOB Superseded by part number: 2418R7D6
19. 2418T8472 [1] SPACER KOB
20. 2418T8473 [2] SPACER KOB
21. 2401P1321 [1] SUN GEAR KOB
22. 2418T20860 [3] LOCKING RING KOB
23. 2418T20857 [6] THRUST WASHER KOB
24. ZR16X05500 [1] RING KOB
25. ZP26D08016 [4] ROLL PIN KOB
26. ZS83C16018 [2] SCREW KOB M16x2.0x18mm
27. 2418T20856 [8] THRUST WASHER KOB
28. 2410T359 [4] SHAFT KOB
29. 2441U834F1 [1] MOTOR ASSY, SWING MOTOR, APPLICABLE: LE14101-15264, Remarks: (34) MOTOR ASSY, SWING MOTOR, APPLICABLE: LE14101-15264, Remarks: (34)
29-1. 2436U1431F1 [1] CONTROL VALVE KOB VALVE, CONTROL, Remarks: SEE(C.P.M) Superseded by part number: 2436U1431F5
29-2. 2441U814F1 [1] HYDRAULIC MOTOR KOB MOTOR, Remarks: SEE(C.P.M)
29-3. 2436U1283F1 [1] VALVE PRESSURE RELIE KOB REDUCTION VALVE, Remarks: SEE(C.P.M)
29-4. ZS23C12135 [6] SCREW,Hex Socket Head, M12 x 135mm KOB M12x1.75x135mm
29-5. ZD12G03500 [2] O-RING,34.40mm ID x 40.60mm OD x 3.10mm KOB ID 34.40 ± 0.33 x OD 40mm
30. 2420T6698D6 [1] PIPE KOB
31. ZE82T12000 [1] PLUG KOB 3/4" PT
32. ZR16X03000 [1] SNAP RING KOB
33. ZG31U12000 [1] ELBOW KOB
34. 2441U834F2 [1] MOTOR, APPLICABLE: LE15265-
34-2. 2441U814F1 [1] HYDRAULIC MOTOR KOB SEE(C.P.M)
34-3. 2436U1283F1 [1] VALVE PRESSURE RELIE KOB SEE(C.P.M)
34-4. ZS23C12135 [6] SCREW,Hex Socket Head, M12 x 135mm KOB M12x1.75x135mm
34-5. ZD12G03500 [2] O-RING,34.40mm ID x 40.60mm OD x 3.10mm KOB ID 34.40 ± 0.33 x OD 40mm
34-6. 2436U1431F2 [1] VALVE, CONTROL SEE(C.P.M) VALVE, CONTROL SEE(C.P.M)
. . 24010P3F16 [1] KIT, SHAFT CONSISTS OF ITEM 28 KIT, SHAFT CONSISTS OF ITEM 28
. . 24100J14170F1 [1] HYDRAULIC MOTOR KOB CONSISTS OF ITEM 1~28, 31, 40, & 41
40. 2418T23617 [1] SPACER
41. 2414T5113 [1] COVER
