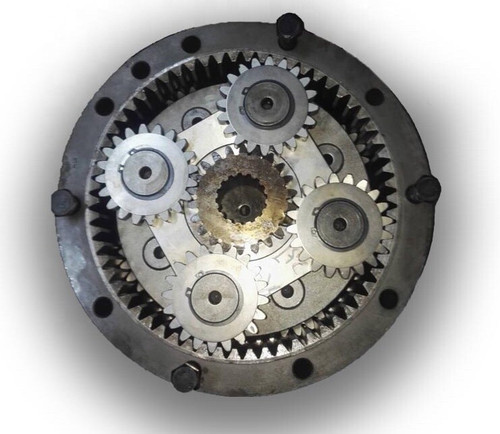

24100J13639F1 SWING REDUCITON FITS KOBELCO SK200-3 SK200 MARK III 24100J13639F2
aftermarket replacement parts
FAST SHIPPING BY UPS 1-8 DAYS , IN STOCK USA ,NEW ,USA BASED SELLER
IMPORTANT NOTE
Please verify the product details through the video to confirm that the product can fit your machine. For any reason to return, you need to
be responsible for the round-trip shipping, please note.
Orders are delivered through LTL for that reason the shipping address must be able to accommodate a full size truck/semi-truck with trailer.
You must indicate if your shipping will be delivered for commercial or residential address (Limited Access).
THIS LISTING WILL BE NORMAL SHIPPING ONLY FOR COMMERCIAL/BUSINESS ADDRESS IN THE CASE OF:
Residential OR Limited access areas shippings will have an additional charge of $120
If you need lift gate, it will have an additional charge of $120
24100J11091F3 [1] MOTOR ASSY, SWING, APPLICABLE: YQ01701-01840 YN12201-13216 MOTOR ASSY, SWING, APPLICABLE: YQ01701-01840 YN12201-13216
. . 24100J11091F5 [1] MOTOR ASSY, SWING, APPLICABLE: YQ01841-01866 YN13217-13486 MOTOR ASSY, SWING, APPLICABLE: YQ01841-01866 YN13217-13486
. . 24100J11091F7 [1] MOTOR ASSY, SWING, APPLICABLE: YQ1867-01948 YN13487-14590 MOTOR ASSY, SWING, APPLICABLE: YQ1867-01948 YN13487-14590
. . 24100J11091F9 [1] HYDRAULIC MOTOR KOB MOTOR ASSY, SWING, APPLICABLE: YQ01949- YN14591- Superseded by part number: 24100J11091F10
5. R25P0047D8 [1] BEARING KOB ROLLER
6. 25Z494D11 [1] BEARING KOB ROLLER
9. 2410T340 [4] ROLLER SHAFT KOB SHAFT
10. 2401N468 [1] RING GEAR KOB GEAR, INTERNAL
11. 2401P1276 [1] SUN GEAR KOB GEAR, SUN
12. 2401P1277 [4] PINION KOB PLANETARY
13. 2401P1279 [4] KIT KOB PINION, PLANETARY, APPLICABLE: YQ01701-01840 YN12201-13216 Superseded by part number: 24001T71F2
15. ZS23C08030 [12] SCREW,Hex Socket Head, M8 x 30mm KOB M08x1.25x30mm Superseded by part number: ZS28C08030
18. 2418P20198D3 [2] SPACER KOB (4.0)
19. 2401P1278 [1] SUN GEAR KOB GEAR, SUN, APPLICABLE: YQ01701-01840 YN12201-13216 Superseded by part number: 2401P1434
20. ZR16X04500 [1] RING KOB Retaining -- ID 45 x OD 58 x Th 1.8mm
23. 2425T383 [76] NEEDLE, ROLLER, APPLICABLE: YQ01701-01840 YN12201-13216 NEEDLE, ROLLER, APPLICABLE: YQ01701-01840 YN12201-13216
24. 2425T384 [140] NEEDLE BEARING KOB NEEDLE, ROLLER
25. ZR16X08500 [1] LOCKING RING KOB SNAP RING
26. ZS83C20020 [2] SCREW KOB Set -- M20x2.50x20mm
28. 2420T6698D3 [1] RIGID TUBE KOB PIPE
29. ZG31U12000 [1] ELBOW KOB 90??
30. ZE82T12000 [1] PLUG KOB 3/4" PT
33. ZS23C14140 [10] SCREW,Hex Socket Head, M14 x 140mm KOB M14x2.0x140mm
34. ZR16X04000 [4] RING KOB Retaining -- ID 37 x OD 40 x Th 1.8mm
37. 2410N519 [1] FINGER ASSY. KOB SHAFT, PINION
38. 2418P23538 [1] HOSE KOB SLEEVE
39. ZD11P09500 [1] O-RING KOB ID 94.6 ± 0.81 x OD 105mm
40. 2418R259 [1] OIL SEAL KOB
41. 2418R2D60 [1] SNAP RING KOB
42. 2418T21667 [1] PLATE KOB
43. 2418T20987 [1] PLATE KOB
44. 2418T20986 [1] PLATE KOB
45. 2418P22799 [1] RETAINER KOB
46. 2418T20988 [1] SPACER KOB (4.0)
47. 2414J2298 [1] HOUSING KOB
48. 2418T20989 [1] SPACER KOB
49. 2413J381 [1] DIFF. SPIDER KOB SPIDER
50. ZP26D08025 [4] PIN KOB Roll -- OD 08 x 25mm Long
51. 2418T20963 [8] THRUST WASHER KOB WASHER, THRUST, APPLICABLE: YQ01701-01840 YN12201-13216 Superseded by part number: 2418T25314
52. 2413N462F1 [1] SPIDER KOB ASSY
53. 2418T20962 [4] THRUST WASHER KOB WASHER, THRUST
54. 2418T19775D3 [4] THRUST WASHER KOB WASHER, THRUST
56. 2441U819F2 [1] HYDRAULIC MOTOR KOB MOTOR, SWING, APPLICABLE: YQ01841-01856 YN13217-13486, Remarks: (61) Superseded by part number: 2441U819F3
56-2. 2441U804F1 [1] HYDRAULIC MOTOR KOB MOTOR, Remarks: SEE(C.P.M)
56-3. 2436U1283F1 [1] VALVE PRESSURE RELIE KOB VALVE, REDUCTION, Remarks: SEE(C.P.M)
56-5. ZD12G03500 [2] O-RING,34.40mm ID x 40.60mm OD x 3.10mm KOB ID 34.40 ± 0.33 x OD 40mm
56-6. 2436U1431F4 [1] CONTROL VALVE KOB VALVE, CONTROL, Remarks: SEE(C.P.M) Superseded by part number: 2436U1431F6
57. 2401P1434 [1] SUN GEAR KOB GEAR, SUN, APPLICABLE: YQ01841- YQ13217-
58. 2401P1438 [4] PINION KOB APPLICABLE: YQ01841-01948 YN13217-14590, Remarks: (63) Superseded by part number: 2401P1440
59. 2425R332 [4] NEEDLE BEARING KOB BEARING, NEEDLE, APPLICABLE: YQ01841- YN13217-
60. 2418T24791 [8] RING KOB WASHER, THRUST, APPLICABLE: YQ01841-01948 YN13217-14590, Remarks: (62)
61. 2441U819F3 [1] HYDRAULIC MOTOR KOB MOTOR, SWING, APPLICABLE: YQ01867- YN13487-
61-2. 2441U804F1 [1] HYDRAULIC MOTOR KOB MOTOR, Remarks: SEE(C.P.M)
61-3. 2436U1283F1 [1] VALVE PRESSURE RELIE KOB VALVE, Remarks: SEE(C.P.M)
61-4. ZS23C12135 [6] SCREW,Hex Socket Head, M12 x 135mm KOB M12x1.75x135mm
61-5. ZD12G03500 [2] O-RING,34.40mm ID x 40.60mm OD x 3.10mm KOB ID 34.40 ± 0.33 x OD 40mm
61-7. 2436U1431F6 [1] CONTROL VALVE KOB VALVE, CONTROL, Remarks: SEE(C.P.M)
62. 2418T25314 [8] THRUST WASHER KOB WASHER, THRUST, APPLICABLE: YQ01949- YN14591-
63. 2401P1440 [4] PINION KOB APPLICABLE: YQ01949- YN14591-
. . 24100J13639F1 [1] HYDRAULIC MOTOR KOB REDUCTION UNIT, APPLICABLE: YQ01701-01840 YN12201-13216, Remarks: CONSISTS OF ITEM 5, 6, 9 to 13, 15, 18, 19, Start Serial: 23 Superseded by part number: 24100J13639F4
. . 24100J13639F2 [1] HYDRAULIC MOTOR KOB REDUCTION UNIT, APPLICABLE: YQ01841-01948 YN13217-14590, Remarks: CONSISTS OF ITEM 5, 6, 9 TO 12, 15, 18, 24 to 26 3 Superseded by part number: 24100J13639F4
. . 24100J13639F3 [1] HYDRAULIC MOTOR KOB REDUCTION UNIT, APPLICABLE: YQ01949- YN14591-, Remarks: CONSISTS OF ITEM 5, 6, 9 to 12, 15, 18, 24 to 26 3 Superseded by part number: 24100J13639F4
. . 24025T2F1 [19] KIT, SERVICE, Remarks: CONSISTS OF ITEM 23
. . 24025T2F2 [35] SERVICE KIT KOB KIT, S
