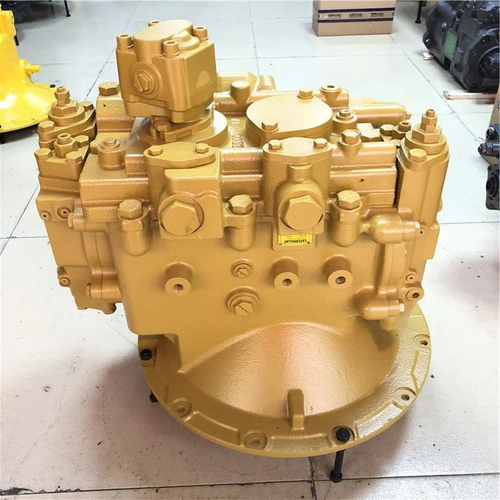

311-7405 3117405 Used Pump Assy Fits for Caterpillar Cat 315D 318DL SBS80
aftermarket replacement parts
Handling time: 30 Business Days.
FAST SHIPPING BY UPS 1-8 DAYS ,
NEW ,USA BASED SELLER
IMPORTANT NOTE
Please verify the product details through the video to confirm that the product can fit your machine. For any reason to return, you need to
be responsible for the round-trip shipping, please note.
Orders are delivered through LTL for that reason the shipping address must be able to accommodate a full size truck/semi-truck with trailer.
You must indicate if your shipping will be delivered for commercial or residential address (Limited Access).
THIS LISTING WILL BE NORMAL SHIPPING ONLY FOR COMMERCIAL/BUSINESS ADDRESS IN THE CASE OF:
Residential OR Limited access areas shippings will have an additional charge of $120
If you need lift gate, it will have an additional charge of $120
31NB-10020 [1] MAIN PUMP *-1,-2
*. 31NB-10022 [1] MAIN PUMP *-1,-2
*-1. @ [1] MAIN PUMP UNIT
S012. XJBN-00680 [2] BLOCK-CYLINDER
111. XJBN-00976 [1] SHAFT-DRIVE(F)
113. XJBN-00977 [1] SHAFT-DRIVE(R)
114. XJBN-00572 [1] COUPLING-SPLINE
123. XJBN-00571 [2] BEARING-ROLLER
124. XJBN-00978 [2] BEARING-NEEDLE
127. XJBN-00569 [3] SPACER-BEARING
130. XJBN-00568 [1] BOOSTER
NS151. XJBN-00681 [18] PISTON
NS152. XJBN-00682 [18] SHOE
153. XJBN-00683 [2] PLATE-SET
156. XJBN-00564 [2] BUSHING-SPHERICAL
157. XJBN-00541 [18] SPRING-CYLINDER
211. XJBN-00023 [2] PLATE-SHOE
S212. XJBN-00012 [2] PLATE-SWASH
S214. XJBN-00013 [2] BUSHING-TILTING
251. XJBN-00560 [2] SUPPORT-S.P.
261. XJBN-00025 [1] COVER(FR)-SEAL
263. XJBN-00979 [1] COVER(RR)-SEAL
N271. XJBN-00980 [2] CASING-PUMP
271. XJBN-01524 [2] CASING-PUMP
311. XJBN-00559 [1] COVER-VALVE(F)
312. XJBN-00558 [1] COVER-VALVE(R)
S313. XJBN-00557 [1] PLATE-VALVE(R)
S314. XJBN-00556 [1] PLATE-VALVE(L)
401. XJBN-00028 [4] SCREW
402. XJBN-00555 [4] SCREW-HEX SOC HD
406. XJBN-00355 [8] SCREW-HEX SOC HD
466. XJBN-00356 [4] PLUG
468. XJBN-00357 [4] PLUG
490. XJBN-00032 [32] PLUG
492. XJBN-00234 [5] PLUG
NS531. XJBN-00981 [2] PIN-TILTING
532. XJBN-00703 [2] PISTON-SERVO
534. XJBN-00034 [2] STOPPER(L)
535. XJBN-00035 [2] STOPPER(S)
NS548. XJBN-00360 [2] PIN-FEED BACK
702. XJBN-00040 [2] O-RING
706. XJBN-00982 [1] O-RING
710. XJBN-00983 [2] O-RING
717. XJBN-00984 [2] O-RING
719. XJBN-00985 [3] O-RING
724. XJBN-00902 [15] O-RING
725. XJBN-00903 [10] O-RING
728. XJBN-00905 [4] O-RING
732. XJBN-00047 [2] O-RING
774. XJBN-00906 [1] SEAL-OIL
789. XJBN-00049 [2] RING-BACK UP
792. XJBN-00050 [2] RING-BACK UP
808. XJBN-00364 [4] NUT
824. XJBN-00052 [2] RING-SNAP
885. XJBN-00053 [2] PIN-2
886. XJBN-00365 [5] PIN-SPRING
901. XJBN-00055 [2] BOLT-EYE
953. XJBN-00056 [2] SCREW-SET
954. XJBN-00553 [2] SCREW-SET
981. XJBN-00156 [1] NAME PLATE
983. XJBN-00341 [2] PIN
984. XJBN-01181 [8] SCREW-SET
*-2. @ [1] REGULATOR-FRONT SEE 4020
*-3. @ [1] REGULATOR-REAR SEE 4030
S011. XJBN-00664 [2] PISTON ASSY SEE ILLUST
S013. XJBN-00665 [1] CYLINDER ASSY-RH SEE ILLUST
S014. XJBN-00666 [1] CYLINDER ASSY-LH SEE ILLUST
S030. XJBN-00011 [2] SWASH PLATE ASSY SEE ILLUST
S530. XJBN-00986 [2] TILTING PIN ASSY SEE ILLUS
