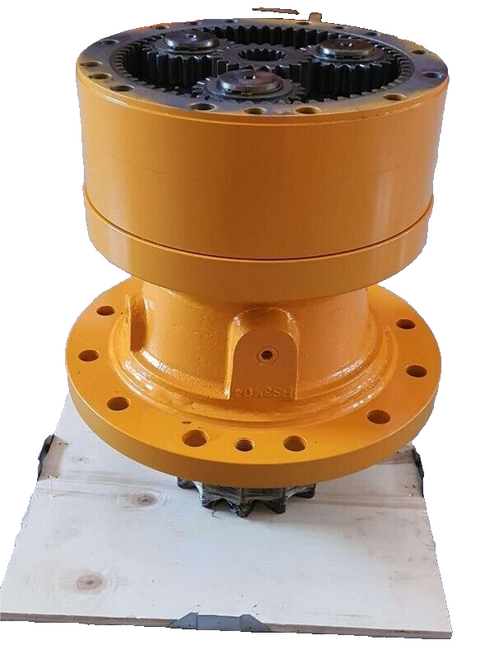

31QA-10140 Swing Reduction Gear Box Device Fits for R360LC-7 R380-9 R385-9
aftermark EXCAVATOR parts,
NEW ,IN STOCK
FAST SHIPPING BY FEDEX 1-5 DAYS ,
USA BASED SELLER
IMPORTANT NOTE
Please verify the product details through the video to confirm that the product can fit your machine. For any reason to return, you need to be responsible for the round-trip
shipping, please note.
Orders are delivered through LTL for that reason the shipping address must be able to accommodate a full size truck/semi-truck with trailer. You must indicate if your
shipping will be delivered for commercial or residential address (Limited Access).
THIS LISTING WILL BE NORMAL SHIPPING ONLY FOR COMMERCIAL/BUSINESS ADDRESS IN THE CASE OF:
Residential OR Limited access areas shippings will have an additional charge of $120
If you need lift gate, it will have an additional charge of $120
OTHER AVAILABLE PARTS:
| Pos. | Part No | Qty | Parts name |
|---|---|---|---|
| *-2. | 31NA-10150 | [1] | SWING REDUCTION GEAR |
| *-2. | 31NA-10151 | [1] | SWING REDUCTION GEAR |
| *-2. | 31NA-10152 | [1] | REDUCTION GEAR |
| 1. | XKAQ-00144 | [1] | CASING |
| 1. | XKAQ-00773 | [1] | CASING |
| 2. | XKAQ-00300 | [1] | SHAFT-DRIVE |
| 2. | XKAQ-00739 | [1] | SHAFT-DRIVE |
| 3. | XKAQ-00146 | [1] | BEARING-ROLLER |
| 4. | XKAQ-00147 | [1] | PLATE-COVER |
| 4. | XKAQ-00747 | [1] | PLATE-COVER |
| 5. | XKAQ-00148 | [8] | BOLT-HEX |
| 6. | XKAQ-00149 | [1] | SEAL-OIL |
| 7. | XKAQ-00027 | [1] | BEARING-ROLLER |
| *. | XKAQ-00264 | [1] | CARRIER ASSY-NO 2 |
| 8. | XKAQ-00251 | [1] | CARRIER 2 |
| 8. | XKAQ-00740 | [1] | CARRIER 2 |
| 10. | XKAQ-00776 | [4] | GEAR-PLANET 2 |
| 10. | XKAQ-00741 | [4] | GEAR-PLANETARY 2 |
| 11. | XKAQ-00254 | [4] | PIN 2 |
| N12. | @ | [4] | BUSHING |
| N33. | @ | [4] | PIN-SPRING |
| 13. | XKAQ-00050 | [4] | PIN-SPRING |
| 14. | XKAQ-00156 | [4] | WASHER-THRUST |
| 14. | XKAQ-00411 | [4] | WASHER |
| *. | XKAQ-00262 | [1] | CARRIER ASSY-NO 1 |
| 15. | XKAQ-00325 | [1] | CARRIER 1 |
| 15. | XKAQ-00743 | [1] | CARRIER 1 |
| 16. | XKAQ-00257 | [1] | GEAR-SUN 1 |
| 16. | XKAQ-00746 | [4] | GEAR-SUN 1 |
| 17. | XKAQ-00777 | [4] | GEAR-PLANET 1 |
| 17. | XKAQ-00774 | [4] | GEAR-PLANET 1 |
| 18. | XKAQ-00019 | [4] | PIN 1 |
| 18. | XKAQ-00415 | [4] | PIN 1 |
| 19. | XKAQ-00030 | [4] | CAGE-NEEDLE |
| 20. | XKAQ-00040 | [4] | PLATE-SIDE 2 |
| 20. | XKAQ-00416 | [4] | PLATE 2-SIDE |
| 21. |
