Product Description

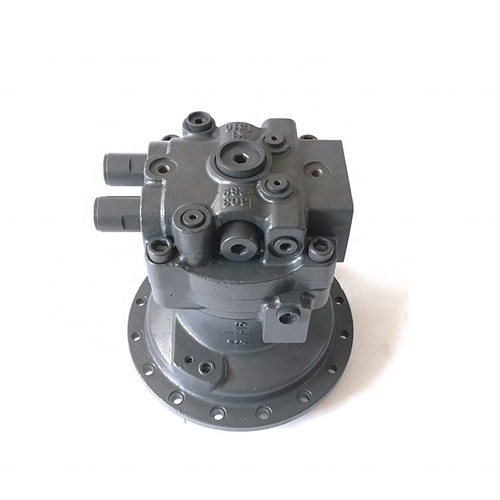

MFC80-015 SG04E Swing Motor FITS FOR CATERPILLAR CAT E314D 314D 169-5569

aftermarket replacement parts,

NEW ,IN STOCK

USA BASED SELLER

IMPORTANT NOTE

Please verify the product details through the video to confirm that the product can fit your machine. For any reason to return, you need to

be responsible for the round-trip shipping, please note.

Orders are delivered through LTL for that reason the shipping address must be able to accommodate a full size truck/semi-truck with trailer.

You must indicate if your shipping will be delivered for commercial or residential address (Limited Access).

THIS LISTING WILL BE NORMAL SHIPPING ONLY FOR COMMERCIAL/BUSINESS ADDRESS IN THE CASE OF:

Residential OR Limited access areas shippings will have an additional charge of $120

If you need lift gate, it will have an additional charge of $120

OTHER AVAILABLE SWING REDUCTION AND TRAVEL REDUCTION PART

PINION SHAFT ,GEAR SUN,GEAR RING ,SPIDER ,PIN,BEARING SPHERICAL ,OIL SEAL ,FLATING SEAL ,HOUSING ,BEARING NEEDLE ,CARRIER ,GEAR PLANETARY,SHIM, COVER ,COUPLING ETC

OTHER AVAILABLE SWING MOTOR PARTS AND TRAVEL MOTOR PARTS:

CYLINDER BLOCK,PISTON ,SET PLATE ,SHOE PLATE,SHAFT ,BALL GUIDE,SPRING,PLATE FRIC,PLATE STEEL,SEAL KIT,RELIAF VALVE ,OIL SEAL ,VALVE PLATE,

OTHER AVAILABLE PARTS:
YY15V00019F1 [1] MOTOR KOB Swing Motor Assembly
051. YY22V00007F1 [2] VALVE KOB Assembly, Relief -- See Figure 08-30-01
051-1. NA [2] NOT SERVICED FOR O-Ring
101. YX15V00004S101 [1] SHAFT KOB
106. 2441U789S106 [3] SPACER KOB
111. YX15V00004S111 [1] CYLINDER KOB
113. 2441U789S113 [1] BUSHING KOB
114. 2441U789S114 [1] SPRING KOB
116. 2441U789S116 [12] PUSH ROD KOB
117. 2441U789S117 [2] SPACER KOB
121. NA [9] NOT SERVICED FOR Piston
122. NA [9] NOT SERVICED FOR Shoe
123. 2441U789S123 [1] PLATE KOB
124. 2441U789S124 [1] PLATE KOB Shoe
131. YX15V00004S131 [1] PLATE KOB Valve
301. YY15V00019S301 [1] BODY SM Housing
303. NA [1] NOT SERVICED FOR Housing
304. YY15V00019S304 [1] COVER KOB Cover, Front
351. YX15V00004S351 [2] SPOOL KOB Plunger
355. YX15V00004S355 [2] SPRING KOB
390. NA [1] NOT SERVICED FOR Name Plate
391. 2437U407S983 [2] RIVET KOB Pin
401. ZS23C16075 [4] SCREW,Hex Socket Head, M16 x 75mm KOB M16x2.0x75mm
432. ZR16X03500 [2] RING KOB Retaining -- ID 32.20 x OD 35 x Th 1.6mm
433. 2436U1318S836 [1] RING KOB
437. ZR26X08000 [1] SNAP RING KOB Retaining -- ID 80 x OD 85.5 x Th 2.5mm
438. ZR26X04200 [1] RETAINER KOB
443. YX15V00004S443 [1] ROLLER BEARING KOB
444. YX15V00004S010 [1] ROLLER BEARING KOB
451. NA [2] NOT SERVICED FOR Pin
468. YW30V00001S157 [2] PLUG KOB
469. 2436U1265S551 [2] PLUG KOB
471. ZD12G08000 [1] O-RING,79.40mm ID x 85.60mm OD x 3.10mm KOB ID 79.40 ± 0.69 x OD 85mm
472. YV15V00002S013 [1] O-RING KOB
487. ZD12P01100 [2] O-RING KOB ID 10.8mm x OD 13.2mm
488. ZD12P02000 [2] O-RING,2.4mm Thk x 19.8mm ID, 90 Duro KOB ID 19.80 ± 0.22 x OD 24mm
491. YY15V00019S491 [1] GASKET KOB Oil Seal
702. 2441U789S702 [1] PISTON KOB Brake
706. 2441U825S706 [1] O-RING KOB
707. 2415U188S706 [1] O-RING KOB
712. 2441U789S712 [20] SPRING KOB
