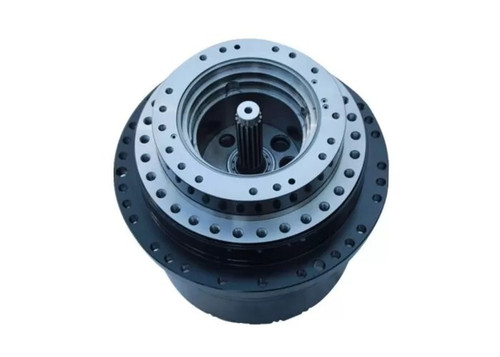

XJDG-00001 TRAVEL REDUCTION Device ,Gear Box Fits for R110-7

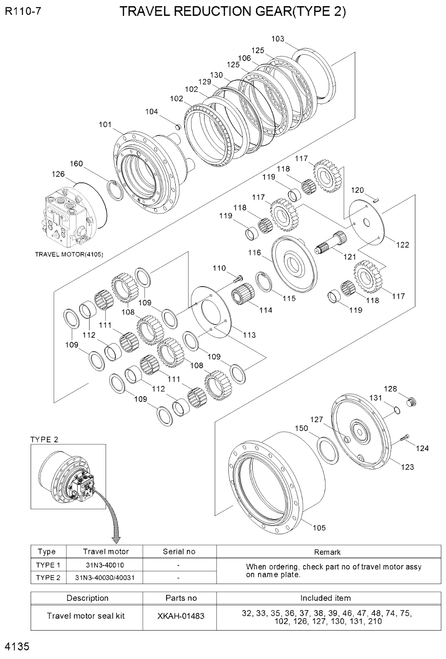

| # | Part No | Part Name | Qty. |
|---|---|---|---|
| * | @ | FUEL INJECTION PIPE & NOZZLE SEE 4100 | 1 |
| *-1 | XJDG-00001 | TRAVEL GEAR ASSY | 1 |
| 1-1 | XJDG-00002 | BODY-CASING | 1 |
| 1-2 | XJDG-00004 | SEAL-FLOATING | 1 |
| 1-3 | XJDG-00005 | BEARING-ANGULAR | 2 |
| 1-4 | XJDG-00006 | NUT-RING | 1 |
| 1-5 | XJDG-00007 | GEAR-CASING | 1 |
| 1-6 | XJDG-00008 | GEAR-SUN A | 1 |
| 1-7 | XJDG-00009 | GEAR-PLANETARY A | 3 |
| 1-8 | XJDG-00010 | BEARING-NEEDLE A | 3 |
| 1-9 | XJDG-00011 | CARRIER | 1 |
| 1-10 | XJDG-00012 | GEAR-SUN B | 1 |
| 1-11 | XJDG-00013 | GEAR-PLANETARY B | 4 |
| 1-12 | XJDG-00014 | BUSHING | 4 |
| 1-13 | XJDG-00015 | BEARING-NEEDLE B | 4 |
| 1-14 | XJDG-00016 | RING-SNAP | 1 |
| 1-15 | XJDG-00017 | PLATE-THRUST (2) | 1 |
| 1-16 | XJDG-00018 | PLATE-THRUST (3) | 1 |
| 1-17 | XJDG-00019 | PLATE-THRUST (4) | 4 |
| 1-18 | XJDG-00020 | SCREW | 9 |
| 1-19 | XJDG-00021 | WASHER | 1 |
| 1-20 | XJDG-00022 | PIN-PARALLEL | 1 |
| 1-21 | XJDG-00023 | COVER | 1 |
| 1-22 | XJDG-00024 | WASHER-SPRING | 16 |
| 1-23 | XJDG-00025 | BOLT | 16 |
| 1-24 | XJDG-00027 | PLUG | 2 |
| K1-25 | XJDG-00028 | O-RING | 2 |
| K | XJDG-00141 | SEAL KIT SEE ILLUST | 1 |
