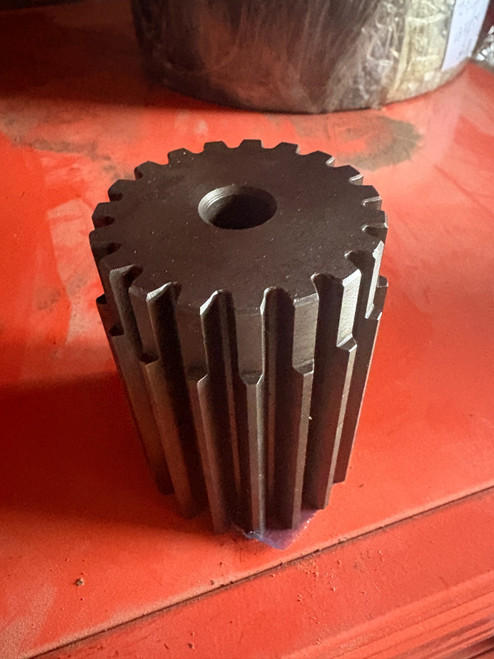

3092035 SUN GEAR SWING REDUCTION FITS FOR HITACHI ZX110-3 ZX120-3 ZX130-3 ZX135
aftermark replacement parts,

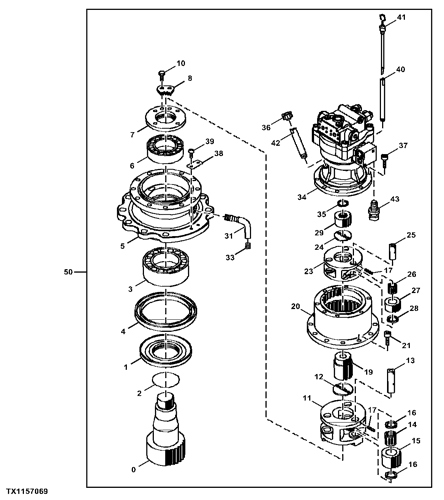

other available parts:
9262017 [1] T.MISSION (SWING) I 9298829 <for assembly of machine>
9277217 [1] T.MISSION (SWING) I 9298829 <for transportation>
00. 2053848 [1] SHAFT;PROP.
01. 3083710 [1] SLEEVE
02. A811095 [1] O-RING
03. 4430041 [1] BRG.;ROL.
04. 4411143 [1] SEAL;OIL
05. 1033421 [1] HOUSING
06. 4408119 [1] BRG.;ROL.
07. 3083674 [1] NUT
08. 4407745 [1] PLATE;LOCK
11. 2042965 [1] CARRIER
12. 4176070 [1] PLATE;THRUST
13. 4408102 [3] PIN
14. 4414855 [3] BRG.;NEEDLE
15. 3084940 [3] GEAR;PLANETARY
16. 4414833 [6] PLATE;THRUST
17. 4116308 [6] PIN;SPRING
19. 3092035 [1] GEAR;SUN
20. 2045146 [1] GEAR;RING
21. M341440 [12] BOLT;SOCKET
22. J901016 [2] BOLT
23. 2042964 [1] CARRIER
24. 4244904 [1] PLATE;THRUST
25. 4408122 [3] PIN
26. 4430040 [3] BRG.;NEEDLE
27. 3083741 [3] GEAR;PLANETARY
28. 4408002 [3] PLATE;THRUST
29. 3083740 [1] GEAR;SUN
31. 3087949 [1] PIPE
33. 94-2012 [1] PLUG
34. 4445352 [1] PLUG
**For the parts described with both part number and application machine model or engine model, please make sure to order according to the part number, the application machine model or engine model is just for reference.
