K3V112DT LIFT HAND ROTATING GROUP HYDRAULIC FITS KAWASAKI PUMP K3V112DTP,
INCUDE:
9 PCS PISTON SHOE 43 160154A1
1 set VALVE PLATE L + block cylinder LS00123 [1]
1 PCS SET PLATE 156959A1
9 PCS SPRING BLOCK 156960A1
1 PCS ball guide ,bushing 169288A1
1 PCS DRIVE SHAFT F 160034A1
1 pcs shoe plate 160113A1
1 KIT SEAL
aftermarket replacement parts,
WARRANTY 3 MONTHS
NEW ,IN STOCK
FREE SHIPPING BY USPS OR FEDEX 1-5 DAYS ARRIVE ,
USA BASED SELLER
other available parts
1 KRJ6199 [1] PUMP, HYDRAULIC SUM Includes All Parts On Figures 08-30 - 08-34
1 87341979 [1] REMAN-HYD PUMP SUM Remanufactured, HYDRAULIC PUMP - N.A. Only
1 87341980 [1] CORE-HYDRAULIC PUMP SUM Return No, HYDRAULIC PUMP - N.A. Only
2 LC00159 [1] HYDRAULIC PUMP SUM See Figure 08-31
43 160154A1 [1] PISTON SUM Incl. 44, 45
46 LS00121 [1] CYLINDER BLOCK SUM Incl. 47, 48
49 LS00123 [1] CYLINDER BLOCK SUM Incl. 50, 51
52 LR00552 [1] PLATE SUM Incl. 53, 54 swing plate + bushing
55 LW00310 [1] PILOT VALVE SUM See Figure 08-33
74 160161A1 [2] LEVER ASSY. SUM Incl. 75, 76
75 NSS [1] NOT SOLD SEPARAT CON Pin
76 NSS [1] NOT SOLD SEPARAT CON Pin, Split
77 160033A1 [1] DRIVE SHAFT f SUM
78 160034A1 [1] DRIVE SHAFT l SUM
79 LB00535 [1] COUPLING SUM
80 NSS [2] NOT SOLD SEPARAT CON Bearing
81 NSS [2] NOT SOLD SEPARAT CON Bearing
82 156963A1 [4] SPACER SUM
83 156959A1 [2] HOLDER SUM set plate
84 169288A1 [2] BUSHING ball guide
85 156960A1 [18] SPRING SUM
86 NSS [1] NOT SOLD SEPARAT CON Plate, Registration
87 160113A1 [2] PLATE set SUM
88 TPP0080 [2] SUPPORT swash SUM Gear Wheel
89 160334A1 [1] COVER SUM
90 LZP0183 [1] COVER SUM Replaces TZP0003
91 160604A1 [2] HOUSING SUM
92 TJ00067 [1] VALVE BLOCK SUM Replaces LJ00694
93 167078A1 [8] BOLT,M8 x 40mm, Cl 12.9 SUM M8 x 40; 12,9
94 861-8020 [8] HEX SOC SCREW,M8 x 20mm, Cl 12.9 CAS Superseded by part number: 86512138
95 155496A1 [2] PLUG SUM
96 155471A1 [4] PLUG SUM
97 LK00003 [27] PLUG SUM
98 160212A1 [2] PISTON SUM
99 160115A1 [2] STOP SUM
100 160116A1 [2] STOP SUM
101 TPP0095 [4] VALVE SEAT SUM
102 TPP0094 [2] STOP SUM
103 NSS [1] NOT SOLD SEPARAT CON Spool
104 156966A1 [4] BALL SUM
105 LE01176 [2] O-RING SUM O-Ring Superseded by part number: 154553A1
106 154713A1 [3] O-RING SUM
107 154805A1 [4] O-RING SUM
108 154455A1 [16] O-RING SUM
109 154467A1 [6] O-RING,10.8mm ID x 2.4mm Width SUM
110 154503A1 [4] O-RING SUM
111 LE01177 [2] O-RING SUM O-Ring Superseded by part number: 154489A1
112 LE01178 [1] OIL SEAL SUM Seal Superseded by part number: LE018730
113 153970A1 [2] BACK-UP RING SUM
114 154017A1 [2] BACK-UP RING SUM
115 NSS [2] NOT SOLD SEPARAT CON Nut
116 162R020VR [2] NUT SUM M20; 10
117 800-1140 [2] SNAP RING,M40, Ext CAS Superseded by part number: 370006
118 156954A1 [2] DOWEL SUM
119 NSS [4] NOT SOLD SEPARAT CON Pin, Roll
120 126R010SR [2] EYEBOLT SUM BOLT, EYE
121 160295A1 [2] SET SCREW SUM
122 160296A1 [2] SET SCREW SUM
123 LA00027 [2] RIVET SUM
124 TLM0023 [2] PLUG SUM
125 154475A1 [2] O-RING SUM
MOTTROL USA EXCAVATOR PARTS DEPOT
YOUR BEST SOURCE FOR OEM QUALITY EXCAVATOR PARTS
PAYMENT POLICY:
We accept PayPal, VISA, MasterCard, Debit Card through PayPal.
SHIPPING POLICY:
Generally shipping can be made within 1 business day after the order is received.
RETURN POLICY:
We offer 14 days return policy after the buyer received the item. Item being returned must be in brand new condition, unused with the original parts and label included. The shipping expenses or any other related fees will be paid by the buyer. We do not accept returns if the item has been installed or has been damaged for some reasons.
LIABILITY:
The parts we provide are not original, it’s aftermarket replacement parts, we are only responsible for the parts we sold, we can accept return, refund or replacement if any problems on the parts, we do not compensate your labor, towing, repair, rental expenses or any other related expenses, please understand.
CONTACT US:
We have more than 15 years’ experience on excavator parts, except the items listed on ebay, we have various excavator parts available, you’re always welcome to contact us should you have inquiry or comments, we will try to reply you within 24 hours, thank you!
PLEASE MAKE SURE THAT YOU'RE ORDERING THE CORRECT PARTS FOR YOUR EXCAVATOR, IF YOU HAVE ANY DOUBT ON THE PARTS YOU’RE ORDERING, PLEASE PROVIDE US WITH DETAILED INFORMATION, THEN WE CAN VERIFY THE PARTS TO AVOID ANY WRONG PARTS AND RETURNS.
(**KIND REMINDER TO OUR DEAR CUSTOMERS: IF YOU’RE SATISFIED WITH THE QUALITY PLEASE GIVE US GOOD RATING AFTER YOU RECEIVE THE GOODS, PLEASE LET US KNOW IF YOU’RE NOT HAPPY WITH THE QUALITY AND WE WILL TRY OUR EFFORTS TO SATISFY YOU.**)

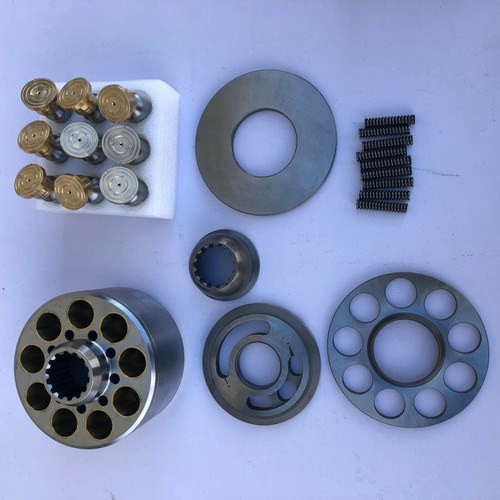

(Note: the picture is just for reference, please refer above for all the parts included in the set.)
