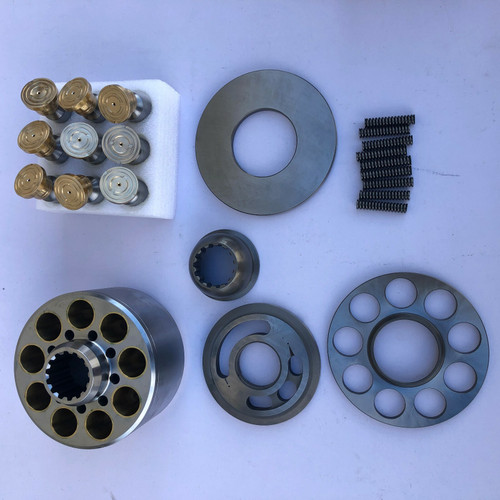

Cx460 Pump Parts,Cylinder Block ,Valve Plate F,Set Plate ,Shoe ,Piston Seal Kit

cx460  pump parts,cylinder block ,valve plate f,set plate ,shoe ,piston SEAL KIT,

INCLUDE:

9 PCS PISTON SHOE  160154A1

1 set VALVE PLATE  f + block cylinder  LJ00075

1 PCS SET PLATE   LR00007

9 PCS SPRING BLOCK   LG00062

1 PCS ball guide ,bushing  LB00647

1 PCS DRIVE SHAFT F LB00927

1 pcs shoe plate 156530A1

1 KIT SEAL

aftermarket replacement parts,

WARRANTY 3 MONTHS

NEW ,IN STOCK

FREE SHIPPING BY USPS OR FEDEX 1-5 DAYS ARRIVE ,

USA BASED SELLER

other available parts

KTJ2030 [1] HYDRAULIC PUMP SUM Incl. 1-141; Also Incl. Parts on Figure(s) 08-66-08-70

.. 87341989 [1] REMAN-HYD PUMP SUM Remanufactured, HYDRAULIC PUMP, For N.A. Only

.. 87341991 [1] CORE-HYDRAULIC PUMP SUM Return Number, For N.A. Only

1. 160154A1 [2] PISTON SUM Incl. 2, 3

2. NSS [9] NOT SOLD SEPARAT CON Piston

3. NSS [9] NOT SOLD SEPARAT CON Shoe

4. LJ00075 [1] TAPPET SUM Incl. 5, 6

5. NSS [1] NOT SOLD SEPARAT CON Block

6. NSS [1] NOT SOLD SEPARAT CON Plate

7. LJ00074 [1] TAPPET SUM Incl. 8, 9

8. NSS [1] NOT SOLD SEPARAT CON Block

9. NSS [1] NOT SOLD SEPARAT CON Plate

10. LR00058 [2] PLATE SUM Incl. 11, 12

11. NSS [1] NOT SOLD SEPARAT CON Plate

12. NSS [1] NOT SOLD SEPARAT CON Bushing

13. LA00100 [2] SPECIAL PIN SUM Incl. 14, 15

14. NSS [1] NOT SOLD SEPARAT CON Pin

15. NSS [1] NOT SOLD SEPARAT CON Pin, Split

16. LB00927 [1] DRIVE SHAFT SUM

17. LB00928 [1] DRIVE SHAFT SUM

18. TC00047 [1] GEAR SUM

19. LB00645 [2] BEARING, ROLLER, CYL SUM

20. LB00646 [2] NEEDLE BEARING SUM

21. LH00041 [3] SPACER SUM

22. LR00007 [2] PLATE SET SUM

23. LB00647 [2] BUSHING BALLGUIDE SUM

24. LG00062 [18] SPRING SUM

25. 156530A1 [2] TRAY SHOE PLATE  SUM

26. LS00011 [2] SUPPORT SUM

27. LW00062 [1] COVER SUM

28. LW00063 [1] COVER SUM

29. LW00064 [2] CASE SUM

30. TJ00152 [1] BLOCK SUM

31. LA00101 [8] BOLT,Hex Skt Hd SUM

32. 861-8020 [8] HEX SOC SCREW,M8 x 20mm, Cl 12.9 CAS Superseded by part number: 86512138

33. 155496A1 [2] PLUG SUM

34. 155471A1 [4] PLUG SUM

35. LK00003 [27] PLUG SUM

36. LK00028 [12] PLUG SUM

37. LJ00070 [2] PISTON SUM

38. LG00061 [2] STOP SUM

39. LG00060 [2] STOP SUM

40. NSS [4] NOT SOLD SEPARAT CON Seat

41. NSS [2] NOT SOLD SEPARAT CON Stop

42. NSS [2] NOT SOLD SEPARAT CON Stop

43. NSS [4] NOT SOLD SEPARAT CON Ball

44. LE01074 [2] O-RING SUM

45. 154733A1 [2] O-RING SUM

46. ​​154777A1 [1] O-RING SUM

47. CDP0808 [2] O-RING SUM

48. CDP0807 [2] O-RING SUM

49. 154455A1 [16] O-RING SUM

50. 154467A1 [6] O-RING, 10.8mm ID x 2.4mm Width SUM

51. 154503A1 [4] O-RING SUM

52. LE01075 [2] O-RING SUM

53. LE00031 [1] OIL SEAL SUM

54. LE00050 [2] BACK-UP RING SUM

55. LE00052 [2] BACK-UP RING SUM

56. 829-1420 [4] NUT,M20, Cl 10 CAS Superseded by part number: 9847024

57. 800-1145 [2] SNAP RING,M45, Ext CAS Superseded by part number: 370007

58. LA00569 [2] DOWEL SUM

59. 338W060Z014B [4] LINCH PIN SUM

60. 126R012SN [2] EYEBOLT SUM BOLT, EYE

61. LA00102 [2] SCREW,Spcl SUM

62. LA00103 [2] SET SCREW,Hex SUM

63. LM00005 [1] TYPE PLATE SUM

64. LA00027 [2] RIVET SUM

123. LC00232 [1] GEAR SUM See Figure 08-69

163. LJ01120 [1] HYDRAULIC PUMP SUM See Figure 08-66 Superseded by part number: LJ01286
