SG04E SWING MOTOR PARTS
AFTERMARKET PARTS,
NEW ,
FAST SHIPPING BY FEDEX OR UPS 1-5 DAYS ARRIVE ,
USA BASED SELLER

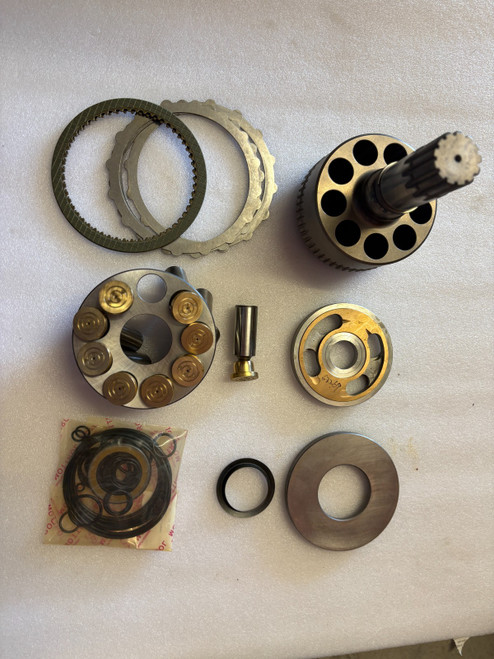

INCULDE:
no 26 BLOCK CYLINDER 1 PCS
no 23 VALVE PALTE 1 PCS ,PLEASE CHECK THE PICTURES OR PART NUMBER
no 9 SHOE PISTON 9 PCS
no 7 SHOE PLATE 1 PCS
no 8 SET PLATE ,RETAINER SHOE 1 PCS
no 6 SPACER,SPRING 1 PCS
no 10 PLATE SEPARATOR 2 PCS
no 11 PLATE FRICTION 2 PCS
SWING MOTOR SEAL KIT 1 SET
other available parts
1. LJ00721 [1] MOTOR, HYDRAULIC SUM Incl. 2-41
2. 160941A1 [1] SEALING RING SUM
3. 160780A1 [1] OIL SEAL SUM
4. 160966A1 [1] TAPERED BEARING,30mm ID x 62mm OD x 21.25mm W SUM
5. LM00060 [1] DIPSTICK SUM Superseded by part number: KRC0172
6. 160993A1 [1] BACK-UP RING SUM
7. 160940A1 [1] LARGE PLATE SUM PLATE, LARGE
8. 160994A1 [1] TRAY SUM
9. NSS [9] NOT SOLD SEPARAT CON Piston
10. 160996A1 [2] BRAKE DISC SUM DISC, BRAKE
11. 160995A1 [2] DISC SUM
12. 161060A1 [1] O-RING SUM
13. 160938A1 [1] PISTON SUM
14. 161061A1 [2] O-RING SUM
15. 156077A1 [14] SPRING SUM
16. LE00774 [2] RING SUM
17. LJ00722 [2] PISTON SUM
18. 160306A1 [3] CAP SUM
19. 154467A1 [3] O-RING, 10.8mm ID x 2.4mm Width SUM
20. LG00336 [4] SPRING SUM
21. LE00775 [4] RING SUM
22. LB00543 [4] BUSHING SUM
23. LR00572 [1] ACTUATING PLATE SUM
24. 160967A1 [1] BEARING, NEEDLE, 22 mm ID x 35 mm OD x 20 mm SUM
25. 160867A1 [1] RING, SNAP SUM RING SNAP
26. NSS [1] NOT SOLD SEPARAT CON Block Assy
27. NSS [1] NOT SOLD SEPARAT CON Housing
28. 151033A1 [1] PLUG SUM
29. LNM0426 [2] VALVE POPPET SUM
30. 166176A1 [2] BACK-UP RING SUM
31. 154487A1 [2] O-RING SUM
32. 154471A1 [2] O-RING SUM
33. NSS [1] NOT SOLD SEPARAT CON Cover Sheet
34. 160859A1 [2] DOWEL SUM
35. KRC0184 [2] VALVE, PRESSURE RELI SUM EF Replaces LNM0429, Includes 155990A1
35-1. 155990A1 [1] SHIM KIT SUM Not Shown
36. 154515A1 [4] O-RING SUM
37. 108R014Z045B [4] BOLT SUM
38. 155944A1 [2] PLUNGER SUM
39. 156079A1 [2] SPRING SUM
40. 156305A1 [2] CAP SUM
41. 153991A1 [2] BACK-UP RING SUM
