K3V180, K3V140 Tilting Pin FOR HYDRAULIC PUMP
aftermarket replacement parts,
FAST SHIPPING BY USPS USA ,
NEW ,IN STOCK
USA BASED SELLER
OTHER AVAILABLE PARTS:
. . LS10V00001F1 [1] PUMP
. . LS10V00001F5R [1] REMAN-HYD PUMP
. . LS10V00001F5C [1] CORE-HYDRAULIC PUMP
1 LS10V00002F1 [1] PUMP ASSY SEE P. LS10V00002-1, (NOT SERVICEABLE)
2 LS10V01001F1 [2] VOLTAGE REGULATOR
3 LS10V00003F1 [1] PUMP
4 YN35V00018F2 [2] SOLENOID VALVE
. LS10V00002F1 [1] PUMP ASSY
12 NSS [2] NOT SOLD SEPARAT CON BLOCK, CYLINDER, (INCL IN KITS)

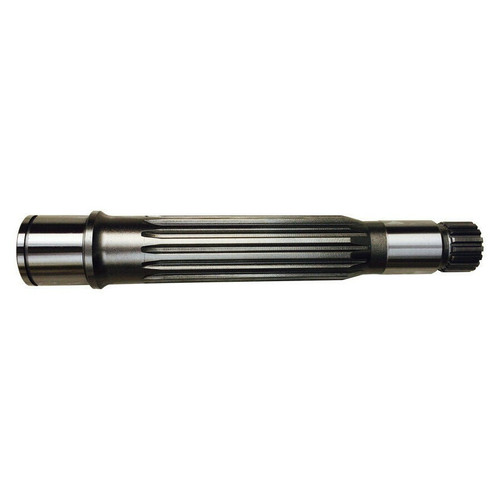

111 2437U534S111 [1] SHAFT KOB (F)
113 LS10V00002S113 [1] SHAFT KOB (R)
114 2437U534S114 [1] COUPLING JOINT KOB
115 LS10V00002S115 [1] COUPLING JOINT KOB
123 2437U534S123 2441U474S123 [2] ROLLER BEARING KOB Superseded by part number:
124 2437U534S124 [2] NEEDLE BEARING KOB BEARING, NEEDLE
127 2437U534S127 [3] SPACER KOB
130 2437U534S130 [1] BRAKE BOOSTER KOB
151 NSS [18] NOT SOLD SEPARAT CON PISTON, (INCL IN KIT)
152 NSS [18] NOT SOLD SEPARAT CON SHOE, (INCL IN KIT)
153 2437U214S153 [2] PLATE KOB
156 LS10V00002S156 [2] BUSHING KOB
157 2437U219S157 [18] SPRING KOB
211 2441U564S124 [2] PLATE KOB SHOE
212 NSS [2] NOT SOLD SEPARAT CON PLATE, (INCL IN KIT)
214 NSS [2] NOT SOLD SEPARAT CON BUSHING, (INCL IN KIT)
251 2437U219S251 [2] COVER KOB SUPPORT
261 2437U214S261 [1] CUP COVER KOB SEAL
271 2437U534S271 [2] CASE KOB
311 2437U534S311 [1] BLOCK, VALVE
312 2437U534S312 [1] BLOCK, VALVE
313 NSS [1] NOT SOLD SEPARAT CON PLATE, VALVE, (INCL IN KIT)
314 NSS [1] NOT SOLD SEPARAT CON PLATE, VALVE, (INCL IN KIT)
401 2437U214S401 [4] SCREW KOB
402 2437U534S402 [4] SCREW KOB
406 ZS23C08020 [4] SCREW,Hex Socket Head, M8 x 20mm KOB M08x1.25x20mm
466 2441U667S466 [4] PLUG KOB 1/4" PF
468 2441U436S469 [4] PLUG KOB
490 2441U722S490 [32] PLUG KOB 1/16" NPTF
492 2436U1165S152 [2] PLUG KOB
531 NSS [2] NOT SOLD SEPARAT CON PIN, (INCL IN KIT)
532 2437U214S532 [2] PISTON KOB PISTON
534 2437U214S534 [2] STOP KOB
535 2437U214S535 [2] STOP KOB
548 NSS [2] NOT SOLD SEPARAT CON PIN, FEEDBACK
702 2437U214S702 [2] O-RING KOB O-RING
706 ZD12G06000 [1] O-RING,59.40mm ID x 65.60mm OD x 3.10mm KOB ID 59.40 ± 0.53 x OD 65mm
710 ZD12G10500 [1] O-RING,104.40mm ID x 110.60mm OD x 3.10mm KOB ID 14.80 ± 0.20 x OD 19mm
717 2441U741S472 [2] O-RING KOB
719 2437U219S719 [3] O-RING KOB
724 ZD12P00800 [15] O-RING,1.9mm Thk x 7.8mm ID, 90 Duro KOB ID 7.8mm x OD 9.7mm
725 ZD12P01100 [10] O-RING KOB ID 10.8mm x OD 13.2mm
728 ZD12P02400 [4] O-RING KOB ID 23.70 ± 0.24 x OD 30mm
732 2437U214S732 [2] O-RING KOB O-RING
774 2437U214S774 [1] GASKET KOB SEAL, OIL Superseded by part number: LC10V00010S019
789 2437U471S789 [2] BACK-UP RING KOB
792 2437U471S792 [2] BACK-UP RING KOB
808 ZN17C20012 [4] NUT KOB Superseded by part number: ZN18C20012
824 ZR16X04500 [2] RING KOB Retaining -- ID 45 x OD 58 x Th 1.8mm
885 2441U474S888 [2] PIN KOB
886 ZP26D06014 [5] PIN KOB Roll -- OD 06 x 14mm Long
887 ZR26X01900 [1] SNAP RING HIT RETAINING
901 2441U413S902 [2] BOLT KOB EYE
953 2437U219S953 [2] SCREW KOB SET
954 2437U534S954 [2] SETSCREW
981 2437U407S981 [1] LABEL KOB NAME PLATE
983 2437U407S983 [2] RIVET KOB PIN
. . 2437U470S11 [2] PISTON KOB CONSSTS OF REF 151, 152
. . 2437U219S01 LS10V00006R200 [1] CYLINDER KOB CONSISTS OF REF 012,313 Superseded by part number:
. . 2437U219S02 LS10V00006R300 [1] CYLINDER KOB CONSISTS OF REF 012,314 Superseded by part number: LS10V00006R300
. . 2437U214S30 [2] PLATE KOB CONSISTS OF REF 212,214
. . 2437U214S530 [2] PIN KOB CONSISTS OF REF 531,548
