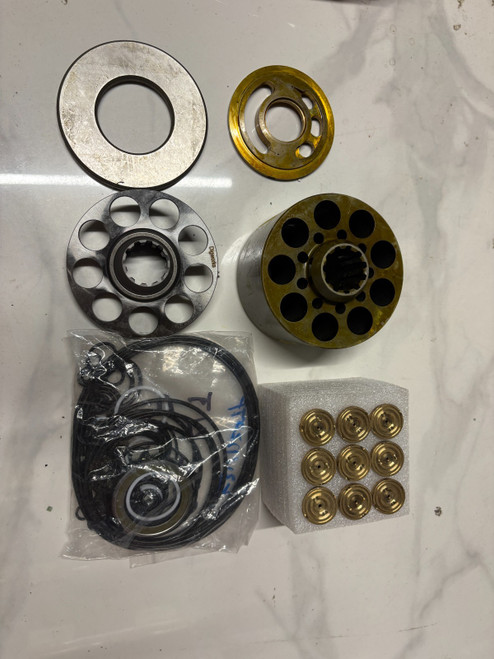

K3V63BDT PUMP:CYL BLOCK ,PISTION,SET ,SHOE,VALVE PLATE,SPRING,SEAL KIT
aftermarket replacement parts,
WARRANTY 3 MONTHS
NEW ,IN STOCK
FAST SHIPPING BY USPS OR FEDEX 1-5 DAYS ARRIVE ,
USA BASED SELLER
cylinder block +valve plate 2 pk
piston shoe 18 pc
spring 18 pc
set plate 2 pc
shoe plate 2 pc
guide ball 2 pc
seal kit for pump 1 set
OTHER AVAILABLE PUMP MODEL:
LP10V00004F1 [1] HYDRAULIC PUMP KOB PUMP ASSY Superseded by part number: LP10V00003F2
111. YW10V00005S111 [1] SHAFT KOB SHAFT (F) Superseded by part number: YW10V00003S111
113. YW10V00005S113 [1] SHAFT KOB SHAFT (R)
114. YW10V00005S114 [1] COUPLING KOB COUPLING
123. YW10V00003S123 [2] BEARING ASSY KOB BEARING,ROLLER
124. YW10V00005S124 [2] BEARING KOB
127. YW10V00003S127 [4] SPACER KOB
141. NSS [2] NOT SOLD SEPARAT CON BLOCK, CYLINDER
151. NSS [18] NOT SOLD SEPARAT CON PISTON
152. NSS [18] NOT SOLD SEPARAT CON SHOE
153. 2437U188S153 [2] PLATE KOB
156. YW10V00005S156 [2] BUSHING KOB
157. 2437U188S157 [18] SPRING KOB
211. 2437U188S211 [2] PLATE KOB
212. NSS [2] NOT SOLD SEPARAT CON PLATE
214. NSS [2] NOT SOLD SEPARAT CON BUSHING
251. YW10V00003S251 [2] SUPPORTING ARM KOB SUPPORT
261. YW10V00003S261 [1] COVER KOB COVER
264. YW10V00005S264 [1] SPACER KOB SPACER
271. YW10V00003S271 [1] HOUSING KOB CASE (F)
272. YW10V00005S272 [1] HOUSING KOB CASE (R)
312. YW10V00005S312 [1] BLOCK KOB
313. NSS [1] NOT SOLD SEPARAT CON PLATE, VALVE
314. NSS [1] NOT SOLD SEPARAT CON PLATE, VALVE
363. NSS [2] NOT SOLD SEPARAT CON PIPE, SEAL
401. YW10V00005S401 [6] SCREW KOB CAPSCREW
405. ZS23C06020 [4] SCREW,Hex Socket Head, M6 x 20mm KOB M06x1.0x20mm Superseded by part number: ZS28C06020
406. ZS23C06030 [4] SCREW,Hex Socket Head, M6 x 30mm KOB M06x1.0x30mm
408. ZS23C12030 [10] SCREW,Hex Socket Head, M12 x 30mm KOB M12x1.75x30mm
466. 2441U667S466 [2] PLUG KOB 1/4" PF
467. YN30V00001S156 [2] PLUG KOB Superseded by part number: YW30V00001S156
468. YW30V00001S155 [1] PLUG KOB 1/2"
490. 2441U722S490 [9] PLUG KOB 1/16" NPTF
508. YW10V00003S508 [2] SET SCREW KOB SETSCREW
530. YW10V00005S530 [2] COVER KOB COVER
531. NSS [2] NOT SOLD SEPARAT CON PIN
532. YW10V00003S532 [2] PISTON KOB PISTON
534. YW10V00003S534 [2] STOP KOB STOPPER
535. YW10V00003S535 [2] STOP KOB STOPPER
548. NSS [2] NOT SOLD SEPARAT CON PIN,FEEDBACK
702. YW10V00003S702 [2] O-RING KOB
708. ZD12P00700 [4] O-RING,1.6mm Thk x 6.8mm ID, 90 Duro KOB O-Ring -- ID 06.80 ± 0.16 x OD 10mm
710. ZD12G03500 [1] O-RING,34.40mm ID x 40.60mm OD x 3.10mm KOB ID 34.40 ± 0.33 x OD 40mm
724. ZD12P00800 [4] O-RING,1.9mm Thk x 7.8mm ID, 90 Duro KOB ID 7.8mm x OD 9.7mm
725. ZD12P01100 [2] O-RING KOB ID 10.8mm x OD 13.2mm
726. ZD12P00900 [8] O-RING KOB ID 08.80 ± 0.17 x OD 12mm
727. ZD12P01400 [2] O-RING KOB ID 13.80 ± 0.19 x OD 18mm
728. ZD12P01800 [1] O-RING KOB ID 17.8mm x OD 20.2mm
732. YW10V00003S732 [2] O-RING KOB
751. YW10V00003S751 [2] PACKING KOB
774. YW10V00003S774 [1] SEAL KIT KOB
789. ZD85P01600 [2] RING KOB BACK UP
792. ZD85G03000 [2] BACK-UP RING KOB ID 30 x OD 35 x Th 1.25mm
793. ZD85P00700 [4] BACK-UP RING KOB ID 07 x OD 10 x Th 1.25mm
806. ZN11C16010 [4] NUT KOB M16x2.0mm
824. ZR16X03500 [3] RING KOB Retaining -- ID 32.20 x OD 35 x Th 1.6mm
826. ZR26X09500 [1] SNAP RING KOB Retaining -- ID 95 x OD 98.5 x Th 3.0mm
885. 2441U436S886 [2] PIN KOB
886. ZP26D06014 [2] PIN KOB Roll -- OD 06 x 14mm Long
888. YW10V00003S888 [2] PIN KOB PIN
953. YW10V00003S953 [4] SET SCREW KOB SETSCREW
981. NSS [1] NOT SOLD SEPARAT CON NAME PLATE
983. NSS [2] NOT SOLD SEPARAT CON PIN
. . YW10V00003S011 [2] PISTON ASSY KOB PISTON ASSY CONSISTS OF ITEM 151.152
. . YW10V00005S013 [1] CYLINDER BLOCK KOB CYLINDER ASSY (R.H) CONSISTS OF ITEM 141,313 Superseded by part number: YW10V00005S014
. . YW10V00005S014 [1] CYLINDER HEAD KOB CYLINDER ASSY (L.H) CONSISTS OF ITEM 141,314
. . YW10V00003S210 [2] PLATE KOB CONSISTS OF ITEM 212,214
. . YW10V00003S520 [2] PIN
