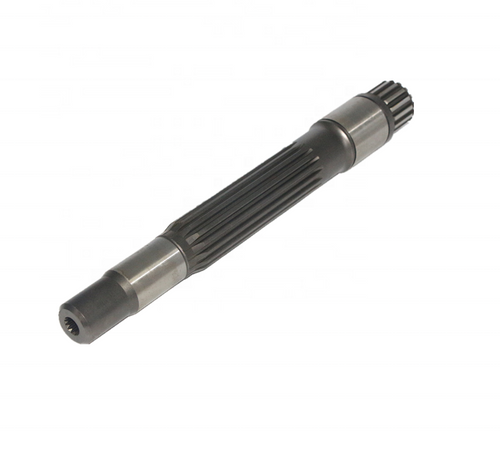

Ls10V00017S113 Shaft Rear Fits Kobelco Sk460-8 Sk485-8,New Holland E485B Pump

LS10V00017S113 SHAFT REAR FITS KOBELCO SK460-8 SK485-8,NEW HOLLAND E485B  PUMP

aftermarket replacement parts,

FAST SHIPPING BY USPS USA ,

NEW ,IN STOCK

USA BASED SELLER

OTHER AVAILABLE PARTS:

. . LS10V00017F1 [1] HYDRAULIC PUMP SM Hydraulic Pump Assembly, Page 1 of 2 Superseded by part number: LS10V00014F2

1 LS10V00017S111 [1] SHAFT SM Shaft

2 LS10V00017S113 [1] SHAFT SM Shaft

3 LS10V00006S123 [1] ROLLER BEARING KOB Bearing, Roller

4 LS10V00017S123 [1] BEARING SM Bearing

5 LS10V00006S124 [2] BEARING SM Bearing

6 LS10V00017S125 [1] RING SM Ring

7 LS10V00006S126 [2] SPACER SM Spacer

8 LS10V00006S127 [1] SPACER SM Spacer

9 LS10V00006S128 [3] SPACER KOB Spacer

10 LS10V00006S129 [2] SPACER SM Spacer

11 LS10V00017S130 [1] IMPELLER SM Impeller

18 LS10V00017S171 [1] BOX SM Case

19 LS10V00017S191 [1] GEAR SM Gear

20 LS10V00017S192 [1] GEAR SM Gear

25 LS10V00017S261 [1] COVER SM Cover

26 YN10V00011S316 [1] COVER KOB

28 LS10V00017S312 [1] COVER SM Cover

29 NA [1] NOT SERVICED FOR Plate

30 NA [1] NOT SERVICED FOR Plate

33 ZS23C12055 [11] SCREW,Hex Socket Head, M12 x 55mm KOB M12x1.75x55mm

36 LS10V00006S411 [2] SCREW SM Cap Screw -- M22

38 2436R802S156 [2] PLUG KOB 1-1/4"

39 YW30V00001S157 [2] PLUG KOB 1/4"

41 YN30V00001S154 [3] PLUG KOB 3/4"

42 2441U722S490 [20] PLUG KOB 1/16" NPTF

57 YX10V00003S012 [1] O-RING KOB

59 YT10V00003S710 [2] O-RING KOB

60 YN10V01006S013 [2] O-RING KOB

61 YN10V00020S015 [3] O-RING KOB

62 LS10V00017S729 [2] O-RING SM O-Ring

63 YW10V00003S732 [2] O-RING KOB

65 LS10V00017S733 [1] O-RING SM O-Ring

66 LS10V00006S762 [2] O-RING SM Packing

67 LC10V00010S019 [2] OIL SEAL KOB

72 ZR16X04500 [1] RING KOB Retaining -- ID 45 x OD 58 x Th 1.8mm

73 ZR16X05000 [3] RING KOB Retaining -- ID 50 x OD 64 x Th 2.0mm

74 ZR16X06500 [2] SNAP RING KOB Retaining -- ID 65 x OD 81 x Th 2.5mm

75 ZR26X09500 [1] SNAP RING KOB Retaining -- ID 95 x OD 98.5 x Th 3.0mm

76 LS10V00006S828 [2] RING SM Ring

77 2441U564S435 [1] RING SM Ring

80 2441U723S885 [1] PIN KOB

82 LS10V00017S889 [4] PIN SM Pin

K. LS10V00017R200 [1] KIT SM Kit, Repair Contains Items 12 & 29

K. LS10V00017R300 [1] KIT SM Kit, Repair Contains Items 12 & 30

 . LS10V00017F1 [1]   HYDRAULIC PUMP SM Hydraulic Pump Assembly Superseded by part number: LS10V00014F2

12 NA [2]   NOT SERVICED   FOR Block

13 NA [18]   NOT SERVICED   FOR Piston

14 NA [18]   NOT SERVICED   FOR Shoe

15 LS10V00006S153 [2]   PLATE   SM Plate

16 LS10V00002S156 [2]   BUSHING   KOB

17 2437U219S157 [18]   SPRING   KOB

21 2441U564S124 [2]   PLATE   KOB

22 NA [2]   NOT SERVICED   FOR Plate

23 NA [2]   NOT SERVICED   FOR Bushing

24 LS10V00006S251 [2]   SUPPORT   KOB Support

26 YN10V00011S316 [1]   COVER   KOB

31 LS10V00017S405 [8]   SCREW SM Cap Screw -- M08

32 ZS23C12035 [8] SCREW,Hex Socket Head, M12 x 35mm KOB M12x1.75x35mm

34 ZS23C10016 [2] SCREW,Hex Socket Head, M10 x 16mm KOB M10x1.50x16mm Superseded by part number: ZS28C10016

35 LS10V00006S410 [9]   SCREW SM Cap Screw -- M22

37 LS10V00006S412 [1]   SCREW SM Cap Screw -- M22

40 LS10V00017S468 [2]   HYD CONNECTOR SM Connector -- M18x1.5mm

41 YN30V00001S154 [3]   PLUG KOB 3/4"

42 2441U722S490 [20]   PLUG KOB 1/16" NPTF

43 2436U1165S152 [12]   PLUG KOB 1/8"

44 YZ10V00002S491 [4]   SCREW SM Cap Screw -- 1/16" NPTF

45 ZE82T04000 [2]   PLUG KOB 1/4" PT

46 NA [2]   NOT SERVICED FOR Pin -- M30x2mm

47 LS10V00006S532 [2]   PISTON SM Piston -- M30x2mm

48 2437U214S534 [2]   STOP   KOB

49 LS10V00006S535 [2]   RETAINER   SM Stopper

50 LS10V00006S536 [2]   COVER   SM Cover

51 NA [2]   NOT SERVICED   FOR Seat

52 NA [2]   NOT SERVICED   FOR Stop

53 NA [2]   NOT SERVICED   FOR Ball

54 NA [2]   NOT SERVICED   FOR Pin

55 2437U214S702 [2]   O-RING   KOB

56 YX10V00003S011 [1]   O-RING   KOB

58 YX10V00003S015 [9] O-RING,1.9mm Thk x 8.8mm ID, 75 Duro   KOB

59 YT10V00003S710 [2]   O-RING   KOB

60 YN10V01006S013 [2]   O-RING   KOB

61 YN10V00020S015 [3]   O-RING   KOB

64 2437U214S732 [2]   O-RING   KOB

66 LS10V00006S762 [2]   O-RING   SM Packing

68 2437U471S789 [2]   BACK-UP RING   KOB

69 2437U471S792 [2]   BACK-UP RING   KOB

70 ZN18C20012 [2]   NUT KOB M20x2.5mm

71 LS10V00006S807 [2]   NUT SM Nut -- M20x2.5mm

78 2441U474S888 [2]   PIN   KOB

79 ZP26D06014 [4]   PIN KOB Roll -- OD 06 x 14mm Long

81 YN10V00003S888 [2]   PIN   KOB

82 LS10V00017S889 [4]   PIN   SM Pin

83 2441U413S902 [2]   BOLT   KOB

84 LS10V00017S953 [2]   SET SCREW   SM Setscrew

85 YZ10V00002S954 [2]   SCREW   KOB Setscrew

86 YB15V00003S390 [1]   PLATE   KOB Plate

87 2437U407S983 [2]   RIVET   KOB

K. LS10V00017R100 [1]   KIT SM Kit, Repair Contains Items 13 & 14

K. LS10V00017R200 [1]   KIT SM Kit, Repair Contains Items 12 & 29

K. LS10V00017R300 [1]   KIT SM Kit, Repair Contains Items 12 & 30

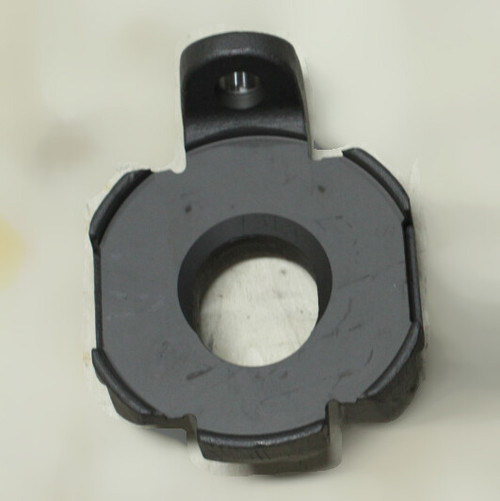

K. LS10V00017R400 [1]   KIT SM Kit, Repair Contains Items 22 & 23

K. 2437U219S41 [1]   REPAIR KIT KOB Contains Items 51, 52 & 53

K. LS10V00006R500 [1]   REPAIR KIT KOB Kit, Repair Contains Items 46 & 54
