M2X63 SWING MOTOR PARTS
AFTERMARKET PARTS,NEW ,IN STOCK ,FAST SHIPPING BY FEDEX OR UPS 1-5 DAYS ARRIVE ,USA BASED SELLER

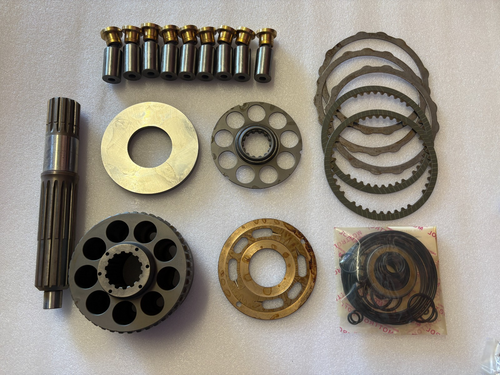

INCULDE:
SHOE PISTON 9 PCS
BLOCK CYLINDER 1 PCS YX15V00004S111
VALVE PLATE 1 PCS YX15V00004S131
PUSHING ROD 12 PCS 2441U789S116
SHOE PLATE 1 2441U789S124
SET PLATE 1 2441U789S123
DRIAVE SHAFT 1 YX15V00004S101
BALL BUIDE 1 2441U789S113
PLATE SEPARATOR 4 PCS YX15V00004S743
PLATE FRICTION 3 PCS YX15V00004S742
SEAL KIT FOR SWING MOTOR 1 SET YV15V00002R400
OTHER AVAILABLE PARTS:
YY15V00019F1 [1] MOTOR KOB Swing Motor Assembly
051. YY22V00007F1 [2] VALVE KOB Assembly, Relief -- See Figure 08-30-01
051-1. NA [2] NOT SERVICED FOR O-Ring
101. YX15V00004S101 [1] SHAFT KOB
106. 2441U789S106 [3] SPACER KOB
111. YX15V00004S111 [1] CYLINDER KOB
113. 2441U789S113 [1] BUSHING KOB
114. 2441U789S114 [1] SPRING KOB
116. 2441U789S116 [12] PUSH ROD KOB
117. 2441U789S117 [2] SPACER KOB
121. NA [9] NOT SERVICED FOR Piston
122. NA [9] NOT SERVICED FOR Shoe
123. 2441U789S123 [1] PLATE KOB
124. 2441U789S124 [1] PLATE KOB Shoe
131. YX15V00004S131 [1] PLATE KOB Valve
301. YY15V00019S301 [1] BODY SM Housing
303. NA [1] NOT SERVICED FOR Housing
304. YY15V00019S304 [1] COVER KOB Cover, Front
351. YX15V00004S351 [2] SPOOL KOB Plunger
355. YX15V00004S355 [2] SPRING KOB
390. NA [1] NOT SERVICED FOR Name Plate
391. 2437U407S983 [2] RIVET KOB Pin
401. ZS23C16075 [4] SCREW,Hex Socket Head, M16 x 75mm KOB M16x2.0x75mm
432. ZR16X03500 [2] RING KOB Retaining -- ID 32.20 x OD 35 x Th 1.6mm
433. 2436U1318S836 [1] RING KOB
437. ZR26X08000 [1] SNAP RING KOB Retaining -- ID 80 x OD 85.5 x Th 2.5mm
438. ZR26X04200 [1] RETAINER KOB
443. YX15V00004S443 [1] ROLLER BEARING KOB
444. YX15V00004S010 [1] ROLLER BEARING KOB
451. NA [2] NOT SERVICED FOR Pin
468. YW30V00001S157 [2] PLUG KOB
469. 2436U1265S551 [2] PLUG KOB
471. ZD12G08000 [1] O-RING,79.40mm ID x 85.60mm OD x 3.10mm KOB ID 79.40 ± 0.69 x OD 85mm
472. YV15V00002S013 [1] O-RING KOB
487. ZD12P01100 [2] O-RING KOB ID 10.8mm x OD 13.2mm
488. ZD12P02000 [2] O-RING,2.4mm Thk x 19.8mm ID, 90 Duro KOB ID 19.80 ± 0.22 x OD 24mm
491. YY15V00019S491 [1] GASKET KOB Oil Seal
702. 2441U789S702 [1] PISTON KOB Brake
706. 2441U825S706 [1] O-RING KOB
707. 2415U188S706 [1] O-RING KOB
712. 2441U789S712 [20] SPRING KOB
742. YX15V00004S742 [3] PLATE KOB Friction
743. YX15V00004S743 [4] PLATE KOB Friction
980. YN15V00035S984 [1] PLUG SM
981. YN15V00035S985 [1] PLUG SM
982. YN15V00035S980 [1] PLUG SM
992. ZE82T12000 [1] PLUG KOB 3/4" PT
K. YX15V00004R100 [1] REPAIR KIT KOB Contains Items 121x9 & 122x9
K. YX15V00004R200 [1] REPAIR KIT KOB Contains Items 303x1 & 451x2
K. YV15V00002R400 [1] KIT KOB Repair, Contains Items 471x1, 472x1, 487x2, 488x2, 491x1, 706x1 & 707x1
