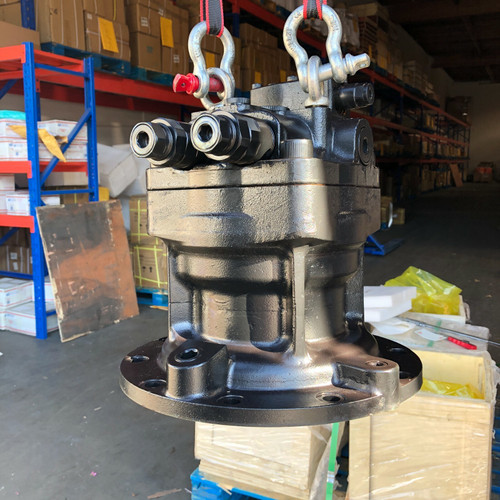

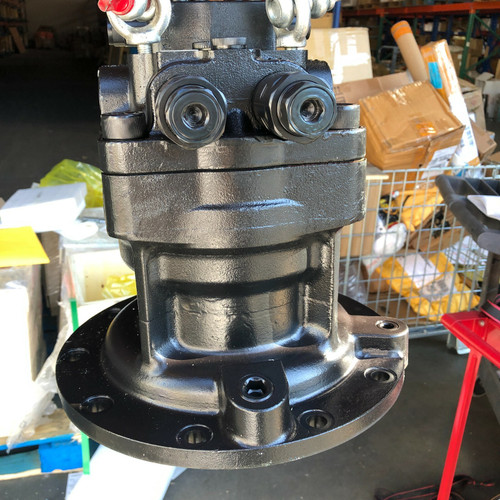

M5X130Chb Swing Motor Fits Sk200-6E Sk210-6E Sk160-6E Sk200Sr Yn15V00025F4

 SWING MOTOR FITS SK200-6E SK210-6E SK160-6E SK200SR YN15V00025F4

aftermarket replacement parts,

NEW ,IN STOCK

USA BASED SELLER

OTHER AVAILABLE SWING REDUCTION AND TRAVEL REDUCTION PART

PINION SHAFT ,GEAR SUN,GEAR RING ,SPIDER ,PIN,BEARING SPHERICAL ,OIL SEAL ,FLATING SEAL ,HOUSING ,BEARING NEEDLE ,CARRIER ,GEAR PLANETARY,SHIM, COVER ,COUPLING ETC

OTHER AVAILABLE SWING MOTOR PARTS AND TRAVEL MOTOR PARTS:

CYLINDER BLOCK,PISTON ,SET PLATE ,SHOE PLATE,SHAFT ,BALL GUIDE,SPRING,PLATE FRIC,PLATE STEEL,SEAL KIT,RELIAF VALVE ,OIL SEAL ,VALVE PLATE,

• . . YN15V00025F1 [1]   HYDRAULIC MOTOR   KOB Superseded by part number: YN15V00025F4

  . . YN15V00025F2 [1]   MOTOR ASSY (SWING)

  . . YN15V00025F3 [1]   MOTOR   KOB Superseded by part number: YN15V00025F5

  . . YN15V00025F5R [1]   REMAN-HYD MOTOR   KOB SK200LC-6ES BTW YQ10-05501 - YQ10-05981, SK200-6ES BTW YN10-38001 - YN10-41732, Reman for new PN YN15V00025F3

  . . YN15V00025F5C [1]   CORE-MOTOR HYDRAULIC   KOB Return Number

  . . YN15V00025F4 [1]   HYDRAULIC MOTOR,121.6CC   KOB ASSY (SWING)

  . . YN15V00025F5 [1]   MOTOR   KOB ASSY (SWING)

  51. YN22V00014F1 [2]   VALVE   KOB ASSY, RELIEF (F1, F4 ONLY)

  52. YN20V00004F1 [1]   VALVE   KOB ASSY, SWING-REACTIONLESS (F1, F3 ONLY)

  53. YN22V00028F1 [2]   VALVE ASSY, RELIEF (F2 ONLY)

  53-1. ZD12G03000 [1]   O-RING,29.40mm ID x 35.60mm OD x 3.10mm   KOB ID 29.4 ± 0.29 x OD 35mm (F2 Only)

  54. YN22V00030F1 [2]   VALVE   KOB ASSY, RELIEF (F3, F5 ONLY)

  54-1. ZD12G03000 [1]   O-RING,29.40mm ID x 35.60mm OD x 3.10mm   KOB ID 29.4 ± 0.29 x OD 35mm (F3, F5 Only)

  55. YN20V00004F4 [2]   CONTROL VALVE   KOB ASSY, SWING-REACTIONLESS (F2, F4, F5 ONLY)

  101. YN15V00025S101 [1]   SHAFT   KOB

  111. YN15V00025S111 [1]   CYLINDER   KOB

  114. YN15V00025S114 [1]   SPRING   KOB

  121. NSS [9]   NOT SOLD SEPARAT   CON PISTON

  122. NSS [9]   NOT SOLD SEPARAT   CON SHOE

  123. YN15V00025S123 [1]   PLATE   KOB SET

  124. YN15V00025S124 [1]   PLATE   KOB SHOE

  131. YN15V00025S131 [1]   PLATE   KOB VALVE

  301. YN15V00025S301 [1]   CASE   KOB

  303. NSS [1]   NOT SOLD SEPARAT   CON CASE

  351. YN15V00002S351 [2]   HYDRAULIC VALVE   KOB PLUNGER Superseded by part number: YN15V00025S351

  355. YN15V00002S355 [2]   SPRING   KOB

  390. 2437U407S981 [1]   LABEL   KOB NAME PLATE

  391. 2437U407S983 [2]   RIVET   KOB PIN

  401. ZS23C20045 [4]   CAP,Hex Socket Head, M20 x 45mm   KOB Screw, M20 x 2.5 x 45mm

  443. YN15V00002S011 [1]   ROLLER BEARING   KOB ROLLER

  444. LQ15V00008S010 [1]   ROLLER BEARING   KOB ROLLER

  451. NSS [2]   NOT SOLD SEPARAT   CON PIN

  469. YN15V00002S012 [2]   PLUG   KOB

  472. 2441U564S735 [1]   O-RING,3.5mm Thk x 173mm ID, 75 Duro   KOB (F1, F2, F3 ONLY) Superseded by part number: YN15V00025S489

  488. ZD12P02800 [2]   O-RING   KOB ID 27.70 ± 0.27 x OD 34mm

  489. YN15V00025S489 [1]   O-RING,3.5mm Thk x 173mm ID, 75 Duro   KOB (F4, F5 ONLY)

  491. 2441U509S491 [1]   OIL SEAL   KOB

  702. YN15V00002S014 [1]   PISTON   KOB BRAKE

  706. 2441U736S706 [1]   O-RING   KOB

  707. 2415U188S707 [1]   O-RING   KOB

  712. YN15V00025S712 [16]   SPRING,ID1.1mm : OD1.8mm : W=3.7mm (this is spring)   KOB BRAKE

  742. YN15V00025S742 [3]   PLATE,ID14mm : OD15.5mm : W=1.7mm   KOB FRICTION

  743. YN15V00025S743 [4]   PLATE,ID14mm : OD15.5mm : W=2mm   KOB SEPARATOR

  980. LQ15V00001S982 [1]   PLUG   KOB

  984. YN15V00002S984 [1]   PLUG   KOB

  985. LQ15V00001S983 [3]   PLUG   KOB

  993. ZE82T08000 [1]   PLUG   KOB 1/2" PT

  994. ZE82T12000 [1]   PLUG   KOB 3/4" PT

  . . YN15V00025R100 [1]   REPAIR KIT   KOB CONSISTS OF REF. 121(9), 122(9)

  . . YN15V00025R200 [1]   REPAIR KIT   KOB CONSISTS OF REF. 303(1), 451(2)

  . . YN15V00025R300 [1]   SEAL ASSY.   KOB REPAIR KIT, CONSISTS OF REF. 472(1), 488(2), 491(1), 706(1), 707(1) (F1, F2, F3 ONLY)

  . . YN15V00025R400 [1]   REPAIR KIT   KOB CONSISTS OF REF. 488(2), 489(1), 491(1), 706(1), 707(1) (F4, F5 ONLY)
