Product Description

PUMP PART :rotor ,valve plate,DRIVE DISK.PISTON,SHAFT CENTER FOR DEERE 892ELC

Name: Pump Part :Rotor ,Valve Plate,Drive Disk.Piston,Shaft Center For Deere 892Elc
Brand: Aftermarket Parts
Price: 1234.99 USD
Availability: InStock

AFTERMARKET PARTS,

NEW ,

FAST SHIPPING BY FEDEX OR UPS 1-5 DAYS ARRIVE ,

USA BASED SELLER

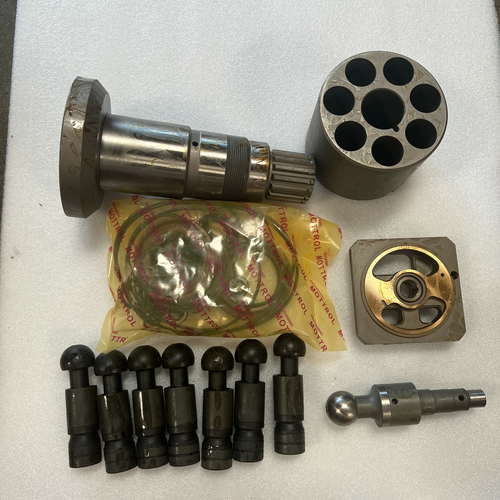

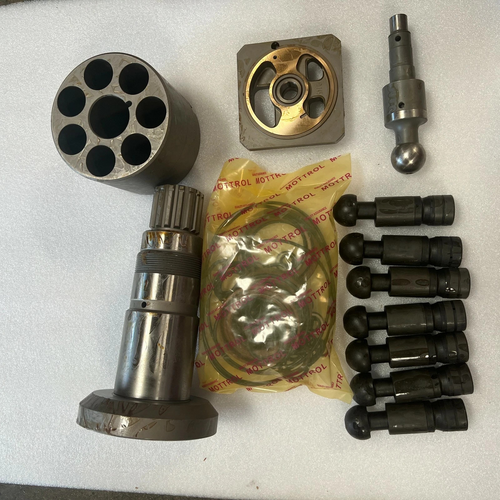

INCLUDE:

BLOCK CYLINDER 1 PCS 2022744 . TH111111

VALVE PLATE 1 PCS 9749142 .AT168530 AT250274

PISTON 7 PCS 8051275 TH111471 AT130837 AT203603

SHAFT CENTER 3081023 . AT219647

SHAFT DRIVE 2038877 . TH111112, AT219590, AT219647

SEAL KIT FOR PUMP 1 SET

OHTER AVAILABLE PARTS:

0. AT201174 [1] Pump NLA, (ORDER AT217368)

0. AT217368 [1] Pump NLA, (ORDER 9127385EX)

0. 9127385 [1] Hydraulic Pump

0. 9127385EX [1] Hydraulic Pump Reman (REMAN FOR AT201174 OR 9127385) (SUB FOR AT217368)

0. AT204769 [1] Pump NLA, (ORDER AT217349)

0. AT217349 [1] Pump NLA, (ORDER 9136850EX)

0. 9136850 [1] Hydraulic Pump NLA, (ORDER 9136850EX)

0. 9136850EX [1] Hydraulic Pump Reman (REMAN FOR AT204769 OR 9136850) (SUB FOR AT217349)

3. 8068521 [1] Gasket (SUB FOR TH112240) (SUB FOR AT250202)

4A. 2038877 [1] Shaft (SUB FOR TH111112, AT219590 AND AT219647)

4B. 2038877 [1] Shaft (SUB FOR AT219590)

6. TH111233 [1] Tapered Roller Bearing

7. JD37194 [1] Tapered Roller Bearing

8. 3035965 [1] Spacer (SUB FOR TH111140)

9. 4191665 [1] Nut (SUB FOR TH111236)

13. 8051275 [7] Piston (SUB FOR AT130837) (SUB FOR AT203603)

14. 2022744 [1] Rotor (SUB FOR TH111111)

16A. ........ [1] Shaft (8035539 NLA) (SUB 3081023 AND 2038877) (SUB FOR TH111473, AT219647 AND AT219590)

16B. 3081023 [1] Shaft (SUB FOR AT219647)

17. L38718 [1] Ball 6 MM (0.236")

18. 4191667 [1] Snap Ring (SUB FOR TH111238)

19. 4194362 [1] Compression Spring (SUB FOR TH111266)

20. 4193062 [1] Snap Ring (SUB FOR TH111251)

21. 4198956 [1] Pin Fastener (SUB FOR T107766)

23. 3035966 [1] Cover (SUB FOR TH111141)

24. 4191664 [1] O-Ring (SUB FOR TH111235)

25. 40M7194 [1] Snap Ring

26. 4639126 [1] Seal (SUB FOR TH112094)

28. 9749142 [1] Valve (SUB FOR AT200967)

28. 9749142 [1] Valve (SUB FOR AT168530) (SUB FOR AT250274)

29. 4193132 [1] Bushing (SUB FOR TH111253)

31. 3039569 [1] Link (SUB FOR TH111194)

32. 9724756 [2] Lever (SUB FOR TH109873)

34. 4179179 [2] Dowel Pin (SUB FOR TH109874)

35. 4179177 [2] Dowel Pin (SUB FOR TH109875)

36. 4200227 [1] Dowel Pin (SUB FOR TH109878)

37. 4179176 [1] Dowel Pin (SUB FOR TH109876)

38. CH17951 [6] Ring

39. ........ [1] Cylinder Head (SUB 1011956) (AT200950 NLA)

39. 1011956 [1] Cylinder Head (SUB FOR AT164668)

41. 3106174 [1] Piston (SUB FOR 3036326) (ALSO ORDER 4641714 AND 4337812) SERVO

41. 4641714 [1] Pin Fastener

41. 4337812 [1] Set Screw

42. 4193245 [1] Pin Fastener (SUB FOR TH111254)

43. 4179838 [1] Set Screw (SUB FOR TH109881)

46. 34M7061 [2] Spring Pin 8 X 20 MM

48. CH11560 [10] Packing

49. 19M8341 [8] Screw M12 X 45

50. 12M7058 [8] Lock Washer 12 MM (SUB FOR 12M6138)

51. AT318013 [1] Drain Plug (SUB FOR 4093624) (SUB FOR TH102536)

51A. M800650 [1] Packing

52. 4204862 [1] Cover (SUB FOR TH111306)

53. 955020 [1] O-Ring (SUB FOR TH111628, 4006683)

59. 984623 [1] O-Ring 41.700 X 3.500 MM (1.642" X 0.138") (SUB FOR TH102592)

62. 4216295 [1] Stop (SUB FOR TH111927)

63. 19M8446 [8] Screw M8 X 20

64. 12M7056 [8] Lock Washer 8 MM (SUB FOR 12M7065)

66. 9127386 [1] Regulator (SUB FOR AT201175)

66. 9136851 [1] Regulator (SUB FOR AT204770)

69. CH17260 [1] Packing

70. 34M3845 [2] Spring Pin 4 X 10 MM

76. 37H99 [2] Screw 0.100" X 1/4"

78. 4211432 [1] Plug (SUB FOR AT200989) (FOR USE WITH AT200950 HEAD)

79. AT318035 [1] O-Ring (SUB FOR 4506424, TH100055) (FOR USE WITH AT200950 HEAD)

81. 0311336 [1] Pipe Plug (SUB FOR TH109082)

82. CH11570 [1] O-Ring
