YN15V00055F1 SWING MOTOR FITS KOBELCO SK200-9 SK210-9 ,NEW HOLLAND E215C E245C
aftermarket replacement parts,
NEW ,IN STOCK
USA BASED SELLER
IMPORTANT NOTE
Please verify the product details through the video to confirm that the product can fit your machine. For any reason to return, you need to
be responsible for the round-trip shipping, please note.
Orders are delivered through LTL for that reason the shipping address must be able to accommodate a full size truck/semi-truck with trailer.
You must indicate if your shipping will be delivered for commercial or residential address (Limited Access).
THIS LISTING WILL BE NORMAL SHIPPING ONLY FOR COMMERCIAL/BUSINESS ADDRESS IN THE CASE OF:
Residential OR Limited access areas shippings will have an additional charge of $120
If you need lift gate, it will have an additional charge of $120
OTHER AVAILABLE SWING REDUCTION AND TRAVEL REDUCTION PART
PINION SHAFT ,GEAR SUN,GEAR RING ,SPIDER ,PIN,BEARING SPHERICAL ,OIL SEAL ,FLATING SEAL ,HOUSING ,BEARING NEEDLE ,CARRIER ,GEAR PLANETARY,SHIM, COVER ,COUPLING ETC
OTHER AVAILABLE SWING MOTOR PARTS AND TRAVEL MOTOR PARTS:
CYLINDER BLOCK,PISTON ,SET PLATE ,SHOE PLATE,SHAFT ,BALL GUIDE,SPRING,PLATE FRIC,PLATE STEEL,SEAL KIT,RELIAF VALVE ,OIL SEAL ,VALVE PLATE,

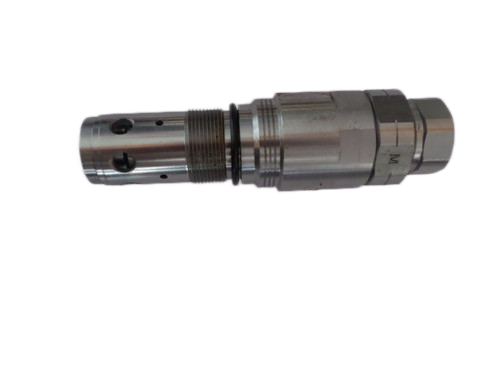

51. YN22V00042F1 [2] HYDRAULIC VALVE SM Relief, Incl 51-1
51-1. ZD12G03000 [1] O-RING,29.40mm ID x 35.60mm OD x 3.10mm KOB ID 29.4 ± 0.29 x OD 35mm
52. YN20V00004F4 [1] CONTROL VALVE KOB Assy - See Fig. 07-001[02]
101. 72209976 [1] SHAFT SM (YN15V00025S101) Superseded by part number: YN15V00025S101
111. 72209977 [1] CYLINDER SM (YN15V00025S111) Superseded by part number: YN15V00025S111
114. 72209978 [1] SPRING SM (YN15V00025S114) Superseded by part number: YN15V00025S114
121. NSS [1] NOT SOLD SEPARAT CON Piston
122. NSS [1] NOT SOLD SEPARAT CON Shoe
123. 72209979 [1] PLATE SM (YN15V00025S123) Superseded by part number: YN15V00025S123
124. 72209980 [1] PLATE SM (YN15V00025S124) Superseded by part number: YN15V00025S124
131. 72209981 [1] PLATE SM (YN15V00025S131) Superseded by part number: YN15V00025S131
301. YN15V00035S301 [1] BOX SM Case
303. NSS [1] NOT SOLD SEPARAT CON Case
351. 72209982 [2] HYDRAULIC VALVE SM (YN15V00025S351) Superseded by part number: YN15V00025S351
355. 72209983 [2] SPRING SM (YN15V00002S355) Superseded by part number: YN15V00002S355
390. NSS [1] NOT SOLD SEPARAT CON Name Plate
391. 2437U407S983 [2] RIVET KOB
401. 72209984 [4] SCREW,Hex Socket Head, M20 x 45mm SM Screw, M20x2.5x45mm Superseded by part number: ZS23C20045
443. 72209985 [1] BEARING SM (YN15V00002S011) Superseded by part number: YN15V00002S011
444. 72209986 [1] BEARING SM (LQ15V00008S010) Superseded by part number: LQ15V00008S010
451. NSS [1] NOT SOLD SEPARAT CON Pin
469. 72209987 [2] PLUG SM Plug, (YN15V00002S012) Superseded by part number: YN15V00002S012
472. 72215374 [1] GASKET,3.5mm Thk x 173mm ID, 75 Duro SM (YN15V00025S489) Superseded by part number: YN15V00025S489
488. 72209989 [2] O-RING IMO ID 27.70 ± 0.27 x OD 34mm, (ZD12P02800) Superseded by part number: ZD12P02800
491. YN15V00035S491 [1] OIL SEAL SM Oil Seal
702. 72209991 [1] PLUNGER SM (YN15V00002S014) Superseded by part number: YN15V00002S014
706. 72209992 [1] O-RING SM Superseded by part number: 2441U736S706
707. 72209993 [1] O-RING SM Superseded by part number: 2415U188S707
712. 72209994 [18] SPRING SM (YN15V00025S712) Superseded by part number: YN15V00025S712
742. 72209995 [3] PLATE SM Superseded by part number: YN15V00025S742
743. 72209996 [4] PLATE SM Superseded by part number: YN15V00025S743
980. YN15V00035S980 [1] PLUG SM Plug
984. YN15V00035S984 [1] PLUG SM Plug
985. YN15V00035S985 [3] PLUG SM Plug
993. 72210000 [1] PLUG SM 1/2" PT, (ZE82T08000) Superseded by part number: ZE82T08000
994. 72210001 [1] PLUG SM 3/4" PT, (ZE82T12000) Superseded by part number: ZE82T12000
995. YN15V00055R100 [1] KIT SM Incl 121 - 122, Not Shown
996. YM15V00006R100 [1] KIT SM Incl 472, 488, 491, 706 - 707, Not Shown
997. 72210005 [1] KIT SM Incl 303, 451, (YN15V00025R200) Not Shown Superseded by part number: YN15V00025R200
MOTTROL(USA) EXCAVATOR PARTS
YOUR BEST SOURCE FOR OEM QUALITY EXCAVATOR PARTS
PAYMENT POLICY:
We accept PayPal, VISA, MasterCard, Debit Card through PayPal.
SHIPPING POLICY:
Generally shipping can be made within 1 business day after the order is received.
RETURN POLICY:
We offer 14 days return policy after the buyer received the item. Item being returned must be in brand new condition, unused with the original parts and label included. The shipping expenses or any other related fees will be paid by the buyer. We do not accept returns if the item has been installed or has been damaged for some reasons.
LIABILITY:
The parts we provide are not original, its aftermarket replacement parts, we are only responsible for the parts we sold, we can accept return, refund or replacement if any problems on the parts, we do not compensate your labor, towing, repair, rental expenses or any other related expenses, please understand.
CONTACT US:
We have more than 15 years experience on excavator parts, except the items listed on ebay, we have various excavator parts available, youre always welcome to contact us should you have inquiry or comments, we will try to reply you within 24 hours, thank you!
PLEASE MAKE SURE THAT YOU'RE ORDERING THE CORRECT PARTS FOR YOUR EXCAVATOR, IF YOU HAVE ANY DOUBT ON THE PARTS YOURE ORDERING, PLEASE PROVIDE US WITH DETAILED INFORMATION, THEN WE CAN VERIFY THE PARTS TO AVOID ANY WRONG PARTS AND RETURNS.
(**KIND REMINDER TO OUR DEAR CUSTOMERS: IF YOURE SATISFIED WITH THE QUALITY PLEASE GIVE US GOOD RATING AFTER YOU RECEIVE THE GOODS, PLEASE LET US KNOW IF YOURE NOT HAPPY WITH THE QUALITY AND WE WILL TRY OUR EFFORTS TO SATISFY YOU.**)
**For the parts described with both part
number and application machine model or engine model, please make sure to order
according to the part number, the application machine model or engine model is
just for reference.
