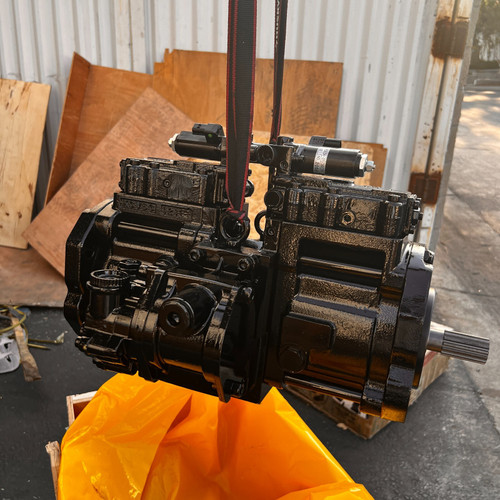

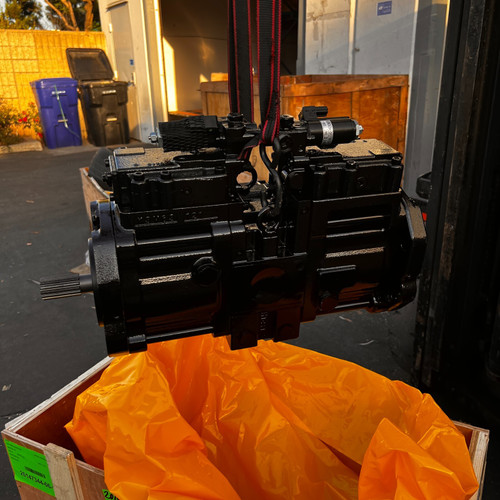

Yy10V00001F6 Hydraulic Pump Fits Kobelco Sk135Sr E130 Eh130 Yy10V00001F1

YY10V00001F6 HYDRAULIC PUMP FITS KOBELCO SK135SR E130 EH130 YY10V00001F1

aftermarket replacement parts?

NEW ?

FAST SHIPPING BY USPS L ?

USA BASED SELLER

                                      IMPORTANT  NOTE

Please verify the product details through the video to confirm that the product can fit your machine. For any reason to return, you need to

be responsible for the round-trip shipping, please note.

Orders are delivered through LTL for that reason the shipping address must be able to accommodate a full size truck/semi-truck with trailer.

 You must indicate if your shipping will be delivered for commercial or residential address (Limited Access).

THIS LISTING WILL BE NORMAL SHIPPING ONLY  FOR COMMERCIAL/BUSINESS ADDRESS IN THE CASE OF:

         Residential OR Limited access areas shippings will have an additional charge of $120

         If you need lift gate, it will have an additional charge of $120

,YY10V00001F1 [1]   HYDRAULIC PUMP   KOB -- Pump No longer Available, Order YY10V00001F6, See Below Superseded by part number: YT13E01083P1, YY10V00001F6

2. YX10V01001F1 [2]   REGULATOR   KOB ASSY., See Figure 08 -30 Superseded by part number: YX10V01001F2

3. YX46W00001F1 [1]   CASE ASSY.   KOB See Figure 08 -29 Superseded by part number: YX46W00001F3

4. YN35V00018F2 [2]   SOLENOID VALVE   KOB See Figure 08 -71

5. YX10V00004F1 [1]   PUMP   KOB See Figure 08 -27 Superseded by part number: 77279971, YX10V00004F2

. . YY10V00001F2 [1]   PUMP   KOB Hydraulic-- Pump No longer Available, Order YY10V00001F6, See Below Superseded by part number: YY10V00001F6

6. YB35V00003F1 [2]   VALVE   KOB See Figure 08 -55

. . YY10V00001F3 [1]   PUMP   KOB Hydraulic-- Pump No longer Available, Order YY10V00001F6, See Below Superseded by part number: YY10V00001F6

7. YX10V00004F2 [1]   PUMP   KOB See Figure 08 -27

. . YY10V00001F4 [1]   PUMP   KOB Hydraulic -- Pump No longer Available, Order YY10V00001F6, See Below -- Pump Serial # 3Z295626 - 56295760 Superseded by part number: YY10V00001F6

2. YX10V01001F2 [2]   REGULATOR   KOB ASSY., See Figure 08 -30

. . YY10V00001F5 [1]   PUMP   KOB Hydraulic -- Pump Serial # 56297323 - 5Y294665 Superseded by part number: YY10V00001F6

. . YY10V00001F6 [1]   HYDRAULIC PUMP   KOB -- Pump Serial # 5Z292487 - UP & 06601500 - UP

1. YX10V00003F3 [1]   PUMP, See Figure 08 -25 111. YX10V00003S111 [1]   SHAFT   KOB (FRONT)

113. YX10V00003S113 [1]   SHAFT   KOB

116. YX10V00003S116 [1]   GEAR   KOB

123. YX10V00003S123 [2]   ROLLER BEARING   KOB

124. YW10V00005S124 [2]   BEARING   KOB

127. YW10V00003S127 [4]   SPACER   KOB

141. NSS [2]   NOT SERVICED SEPARATELY   CON BLOCK, CYLINDER

153. 2437U188S153 [2]   PLATE   KOB

156. YW10V00005S156 [2]   BUSHING   KOB

157. 2437U188S157 [18]   SPRING   KOB SPRING

211. 2437U188S211 [2]   PLATE   KOB

251. 2437U188S251 [1]   PLATE   KOB

252. YX10V00003S252 [1]   SUPPORT   KOB

261. 2437U188S261 [1]   COVER   KOB

262. YX10V00003S262 [1]   COVER   KOB

271. 2437U188S271 [2]   CASING   KOB

312. YX10V00003S312 [1]   BLOCK   KOB

401. 2437U188S401 [8]   CAPSCREW   KOB SCREW

406. ZS23C06016 [8]   SCREW,Hex Socket Head, M6 x 16mm   KOB Superseded by part number: ZS28C06016

466. 2441U667S466 [2]   PLUG   KOB

467. 2441U436S468 [4]   PLUG   KOB PLUG

490. 2441U722S490 [15]   PLUG   KOB

532. YX10V00003S532 [2]   PISTON   KOB

534. YX10V00003S534 [2]   STOP   KOB

535. 2437U188S535 [2]   STOP   KOB

702. ZD12G03000 [2]   O-RING,29.40mm ID x 35.60mm OD x 3.10mm   KOB

710. ZD12G08500 [2]   O-RING,84.40mm ID x 90.60mm OD x 3.10mm   KOB

711. ZD12G09500 [1]   O-RING,3.1mm Thk x 94.4mm ID, 90 Duro   KOB

717. ZD12G12000 [2]   O-RING,3.1mm Thk x 119.4mm ID, 90 Duro   KOB

719. ZD12G11500 [2]   O-RING,114.40mm ID x 120.60mm OD x 3.10mm   KOB

724. ZD12P00800 [18]   O-RING,1.9mm Thk x 7.8mm ID, 90 Duro   KOB

725. ZD12P01100 [2]   O-RING   KOB
