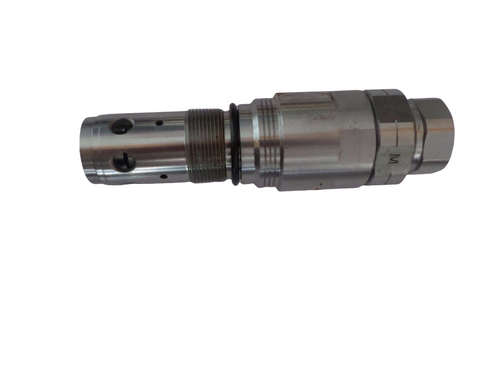

• YY22V00007F1 RELIFE VALVE FITS KOBELCO SK135SRLC SK140SR ED140 SWING MOTOR

• other available parts
• . . YY15V00019F1 [1] MOTOR KOB Swing Motor Assembly
• 51 YY22V00007F1 [2] VALVE KOB Assembly, Relief -- See Figure 08-31-01
• 051-1. NA [2] NOT SERVICED FOR O-Ring
• 101 YX15V00004S101 [1] SHAFT KOB
• 106 2441U789S106 [3] SPACER KOB
• 111 YX15V00004S111 [1] CYLINDER KOB
• 113 2441U789S113 [1] BUSHING KOB
• 114 2441U789S114 [1] SPRING KOB
• 116 2441U789S116 [12] PUSH ROD KOB
• 117 2441U789S117 [2] SPACER KOB
• 121 NA [9] NOT SERVICED FOR Piston
• 122 NA [9] NOT SERVICED FOR Shoe
• 123 2441U789S123 [1] PLATE KOB
• 124 2441U789S124 [1] PLATE KOB Shoe
• 131 YX15V00004S131 [1] PLATE KOB Valve
• 301 YY15V00019S301 [1] BODY SM Housing
• 303 NA [1] NOT SERVICED FOR Housing
• 304 YY15V00019S304 [1] COVER KOB Cover, Front
• 351 YX15V00004S351 [2] SPOOL KOB Plunger
• 355 YX15V00004S355 [2] SPRING KOB
• 390 NA [1] NOT SERVICED FOR Name Plate
• 391 2437U407S983 [2] RIVET KOB Pin
• 401 ZS23C16075 [4] SCREW,Hex Socket Head, M16 x 75mm KOB M16x2.0x75mm
• 432 ZR16X03500 [2] RING KOB Retaining -- ID 32.20 x OD 35 x Th 1.6mm
• 433 2436U1318S836 [1] RING KOB
• 437 ZR26X08000 [1] SNAP RING KOB Retaining -- ID 80 x OD 85.5 x Th 2.5mm
• 438 ZR26X04200 [1] RETAINER KOB
• 443 YX15V00004S443 [1] ROLLER BEARING KOB
• 444 YX15V00004S010 [1] ROLLER BEARING KOB
• 451 NA [2] NOT SERVICED FOR Pin
• 468 YW30V00001S157 [2] PLUG KOB
• 469 2436U1265S551 [2] PLUG KOB
• 471 ZD12G08000 [1] O-RING,79.40mm ID x 85.60mm OD x 3.10mm KOB ID 79.40 ± 0.69 x OD 85mm
• 472 YV15V00002S013 [1] O-RING KOB
• 487 ZD12P01100 [2] O-RING KOB ID 10.8mm x OD 13.2mm
• 488 ZD12P02000 [2] O-RING,2.4mm Thk x 19.8mm ID, 90 Duro KOB ID 19.80 ± 0.22 x OD 24mm
• 491 YY15V00019S491 [1] GASKET KOB Oil Seal
• 702 2441U789S702 [1] PISTON KOB Brake
• 706 2441U825S706 [1] O-RING KOB
• 707 2415U188S706 [1] O-RING KOB
• 712 2441U789S712 [20] SPRING KOB
• 742 YX15V00004S742 [3] PLATE KOB Friction
• 743 YX15V00004S743 [4] PLATE KOB Friction
• 980 YN15V00035S984 [1] PLUG SM
• 981 YN15V00035S985 [1] PLUG SM
• 982 YN15V00035S980 [1] PLUG SM
• 992 ZE82T12000 [1] PLUG KOB 3/4" PT
• K. YX15V00004R100 [1] REPAIR KIT KOB Contains Items 121x9 & 122x9
• K. YX15V00004R200 [1] REPAIR KIT KOB Contains Items 303x1 & 451x2
• K. YV15V00002R400 [1] KIT KOB Repair, Contains Items 471x1, 472x1, 487x2, 488x2, 491x1, 706x1 & 707x1
